Description

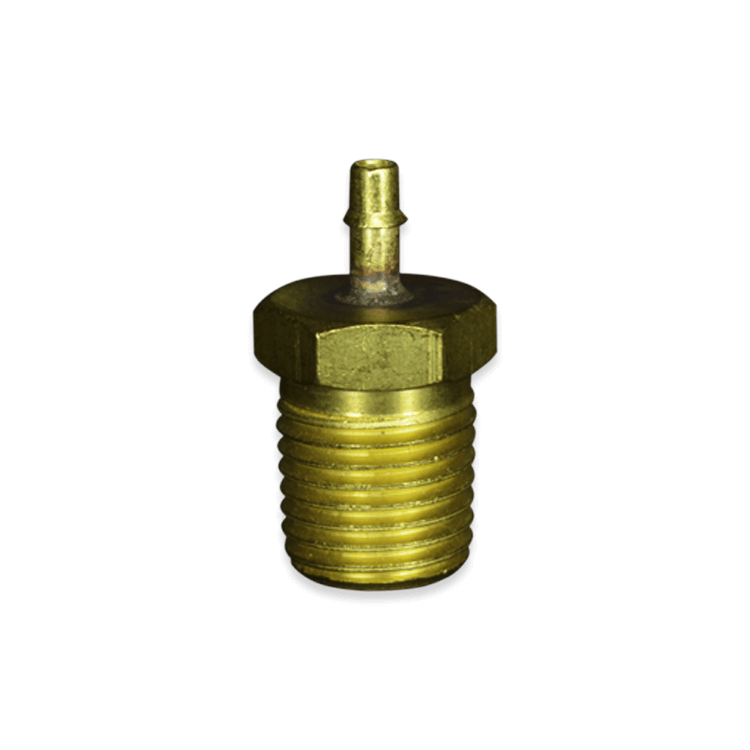

The DMA Series a Brass male NPT thread to ID bite-style barb adapter that works well with Polyethylene tubing. This fitting has excellent vibration resistance and requires no clamp. The maximum working pressure is 150 psi and the temperature range is -65° F to 90° F. Available MNPT thread sizes are 1/16 inch, 1/8 inch, 3/8 inch, 1/4 inch, and 1/2 inch. ID sizes range from .170 inch to .375 inch.
| SKU | Description |
|---|---|
| DMA-10170 | 10-32 inch male UNF by .170 inch ID Brass Adapter |
| DMA-12375 | 1/2 inch MNPT by .375 inch ID Brass Adapter |
| DMA-14170 | 1/4 inch MNPT by 7/32 inch ID Brass Adapter |
| DMA-14375 | 1/4 inch MNPT by .375 inch ID Brass Adapter |
| DMA-16170 | 1/16 inch MNPT by .170 inch ID Brass Adapter |
| DMA-1618 | 1/16 inch MNPT by .250 inch ID Brass Adapter |
| DMA-18170 | 1/8 inch MNPT by .170 inch ID Brass Adapter |
| DMA-18250 | 1/8 inch MNPT by .250 inch ID Brass Adapter |
| DMA-18332 | 1/8 inch MNPT by 3/32 inch ID Brass Adapter |
| DMA-38375 | 3/8 inch MNPT by .375 inch ID Brass Adapter |
