GEN1 Series, manufactured by Pneuline, are Single Barbed Plastic Fittings without a parting line on the barb.
GEN1 Series Barbed Fittings
Description
GEN1 Series, manufactured by Pneuline, are single barbed plastic fittings without a parting line on the barb.
Click Here to View Material Options.
Some materials have specific characteristics such as:
- Black Nylon is UV resistant, making it good for outdoor use.
- Glass-filled nylon is stronger than regular nylon and doesn’t absorb liquids, making it good for use where water is prevalent. Glass-filled nylon is also good for outdoor motor vehicles, such as motorcycles, boats, and cars.
- PVDF, Polypropylene, and Polycarbonate are all Class 6 USP and are good for medical and bio-pharmaceutical applications. These materials are bovine-free.
- Acetal is NSF 51/61 listed and can be used for potable water and food applications.

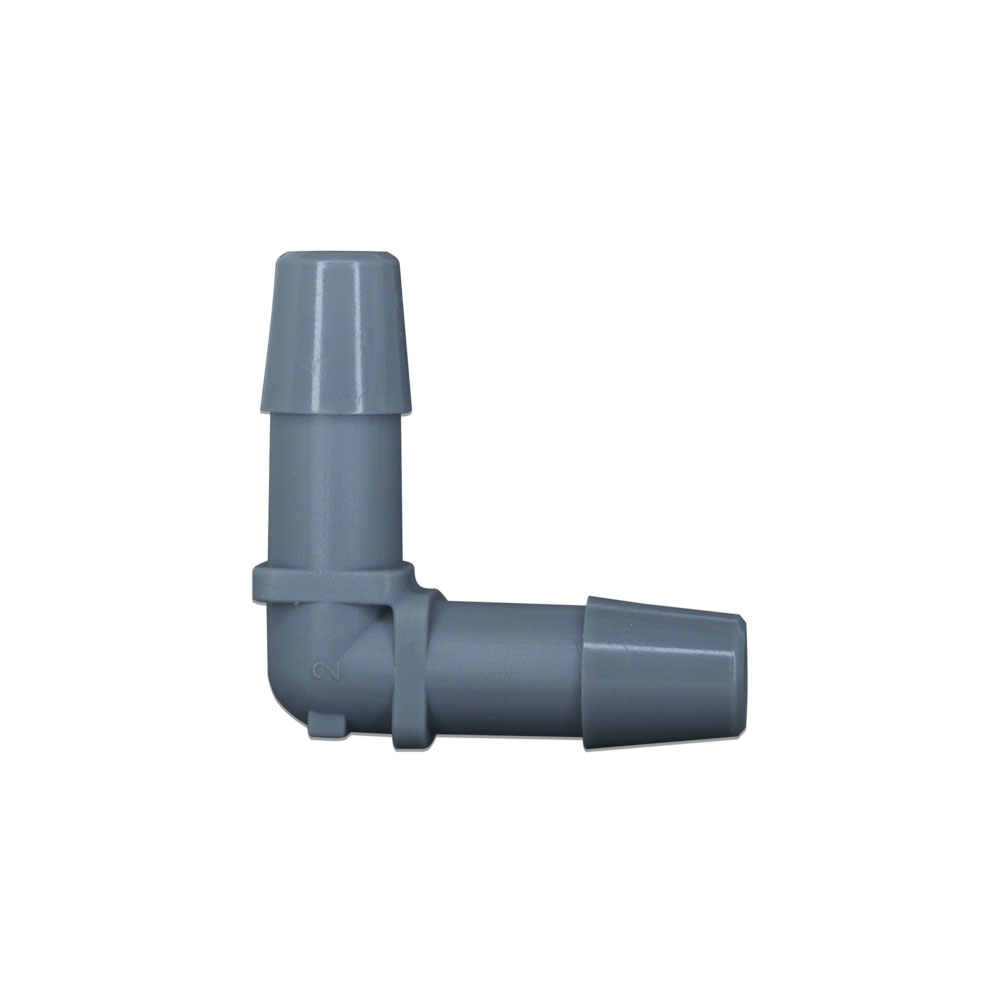

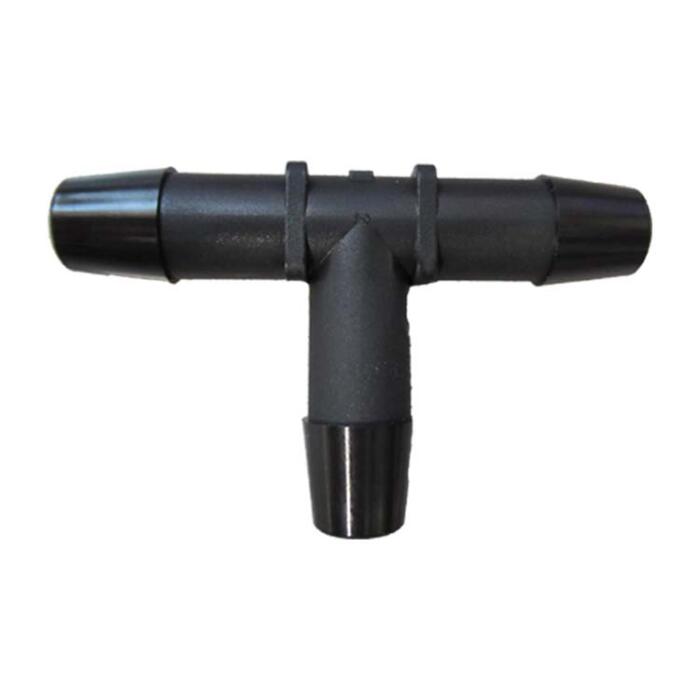

Available in Tees, Elbows, and Straight connections.
Items can be run in a class 7 clean room environment.
The GEN1 Series is available with barb sizes of 1/16, 1/8, 3/16 inch, 1/4 inch, 3/8 inch.
| SKU | Description |
|---|---|
| GEN1-T-1B | 1/16 inch Single Barb Tee |
| Gen1-T-2B | 1/8 inch Single Barb Tee |
| Gen1-T-3B | 3/16 Single Barb Tee |
| GEN1-T-4B | 1/4 inch Single Barb Tee |
| GEN1-T-6B | 3/8 inch Single Barb Tee |
| Gen1-L-1B | 1/16 inch Barbed Elbow |
| Gen1-L-2B | 1/8 Inch Barbed Elbow |
| GEN1-L-3B | 3/16 inch Single Barb Elbow |
| GEN1-L-4B | 1/4 inch Single Barb Elbow |
| GEN1-L-6B | 3/8 inch Single Barb Elbow |
| Gen1-S-1B | 1/16 Inch Single Barb Straight |
| Gen1-S-2B | 1/8 inch Single Barb Straight |
| GEN1-S-3B | 3/16 inch Single Barb Straight |
| GEN1-S-4B | 1/4 inch Single Barb Straight |
| GEN1-S-6B | 3/8 inch Single Barb Straight |
| SKU | Description | Description |
|---|---|---|
| Fitting for tube ID | Natural PVDF | Gray PVDF |
| GEN1-T-1B NK | 1/16 inch Single Barb Tee PVDF | 1/16 inch Single Barb Tee GK |
| Gen1-T-2B NK | 1/8 inch Single Barb Tee PVDF | 1/8 inch Single Barb Tee GK |
| Gen1-T-3B NK | 3/16 Single Barb Tee PVDF | 3/16 Single Barb Tee GK |
| GEN1-T-4B NK | 1/4 inch Single Barb Tee PVDF | 1/4 inch Single Barb Tee GK |
| GEN1-T-6B NK | 3/8 inch Single Barb Tee PVDF | 3/8 inch Single Barb Tee GK |
| Gen1-L-1B NK | 1/16 inch Barbed Elbow PVDF | 1/16 inch Barbed Elbow GK |
| Gen1-L-2B NK | 1/8 Inch Barbed Elbow PVDF | 1/8 Inch Barbed Elbow GK |
| GEN1-L-3B NK | 3/16 inch Single Barb Elbow PVDF | 3/16 inch Single Barb Elbow GK |
| GEN1-L-4B NK | 1/4 inch Single Barb Elbow PVDF | 1/4 inch Single Barb Elbow GK |
| GEN1-L-6B NK | 3/8 inch Single Barb Elbow PVDF | 3/8 inch Single Barb Elbow GK |
| Gen1-S-1B NK | 1/16 Inch Single Barb Straight PVDF | 1/16 Inch Single Barb Straight GK |
| Gen1-S-2B NK | 1/8 inch Single Barb Straight PVDF | 1/8 inch Single Barb Straight GK |
| GEN1-S-3B NK | 3/16 inch Single Barb Straight PVDF | 3/16 inch Single Barb Straight GK |
| GEN1-S-4B NK | 1/4 inch Single Barb Straight PVDF | 1/4 inch Single Barb Straight GK |
| GEN1-S-6B NK | 3/8 inch Single Barb Straight PVDF | 3/8 inch Single Barb Straight GK |
| SKU | Description | Description | Description | Description |
|---|---|---|---|---|
| Fitting for tube ID | Natural Nylon NN | White Nylon WN | Black Nylon BN | 30% Glass Filled Black Nylon GFBN |
| GEN1-T-1B | 1/16 inch Single Barb Tee NN | 1/16 inch Single Barb Tee WN | 1/16 inch Single Barb Tee BN | 1/16 inch Single Barb Tee GFBN |
| GEN1-T-2B | 1/8 inch Single Barb Tee NN | 1/8 inch Single Barb Tee WN | 1/8 inch Single Barb Tee BN | 1/8 inch Single Barb Tee GFBN |
| GEN1-T-3B | 3/16 Single Barb Tee NN | 3/16 Single Barb Tee WN | 3/16 Single Barb Tee BN | 3/16 Single Barb Tee WN |
| GEN1-T-4B | 1/4 inch Single Barb Tee NN | 1/4 inch Single Barb Tee WN | 1/4 inch Single Barb Tee BN | 1/4 inch Single Barb Tee GFBN |
| GEN1-T-6B | 3/8 inch Single Barb Tee NN | 3/8 inch Single Barb Tee WN | 3/8 inch Single Barb Tee BN | 3/8 inch Single Barb Tee GFBN |
| GEN1-L-1B | 1/16 inch Barbed Elbow NN | 1/16 inch Barbed Elbow WN | 1/16 inch Barbed Elbow BN | 1/16 inch Barbed Elbow GFBN |
| GEN1-L-2B | 1/8 Inch Barbed Elbow NN | 1/8 Inch Barbed Elbow WN | 1/8 Inch Barbed Elbow BN | 1/8 Inch Barbed Elbow GFBN |
| GEN1-L-3B | 3/16 inch Single Barb Elbow NN | 3/16 inch Single Barb Elbow WN | 3/16 inch Single Barb Elbow BN | 3/16 inch Single Barb Elbow GFBN |
| GEN1-L-4B | 1/4 inch Single Barb Elbow NN | 1/4 inch Single Barb Elbow WN | 1/4 inch Single Barb Elbow BN | 1/4 inch Single Barb Elbow GFBN |
| GEN1-L-6B | 3/8 inch Single Barb Elbow NN | 3/8 inch Single Barb Elbow WN | 3/8 inch Single Barb Elbow BN | 3/8 inch Single Barb Elbow GFBN |
| GEN1-S-1B | 1/16 Inch Single Barb Straight NN | 1/16 Inch Single Barb Straight WN | 1/16 Inch Single Barb Straight BN | 1/16 Inch Single Barb Straight GFBN |
| Gen1-S-2B | 1/8 inch Single Barb Straight NN | 1/8 inch Single Barb Straight WN | 1/8 inch Single Barb Straight BN | 1/8 inch Single Barb Straight GFBN |
| GEN1-S-3B | 3/16 inch Single Barb Straight NN | 3/16 inch Single Barb Straight WN | 3/16 inch Single Barb Straight BN | 3/16 inch Single Barb Straight GFBN |
| GEN1-S-4B | 1/4 inch Single Barb Straight NN | 1/4 inch Single Barb Straight WN | 1/4 inch Single Barb Straight BN | 1/4 inch Single Barb Straight GFBN |
| GEN1-S-6B | 3/8 inch Single Barb Straight NN | 3/8 inch Single Barb Straight WN | 3/8 inch Single Barb Straight BN | 3/8 inch Single Barb Straight GFBN |
