Description

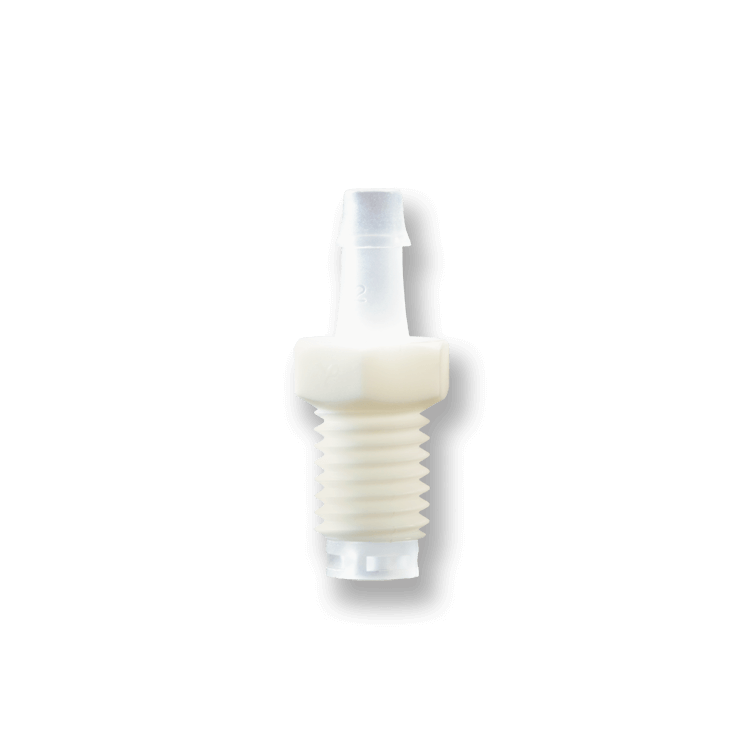

The AM-U Series is a 1/4-28 inch UNF bottom sealing Swivel fitting. It is available with Polypropylene or PVDF interiors with a Nylon encasement. The Nylon comes in five colors: white, black, red, blue, or green. There are three barb sizes: 1/16 inch, 3/32 inch, and 1/8 inch.
| SKU | Description |
|---|---|
| AM-U-14S1B-NP | 1/4-28 inch UNF by 1/16 inch Nylon over Polypropylene Single Barbed Swivel |
| AM-U-14S1B-PVDF | 1/4-28 inch UNF by 1/16 inch Nylon over PVDF Single Barbed Swivel |
| AM-U-14S1B-WN | 1/4-28 inch UNF by 1/16 inch White Nylon Single Barbed Swivel |
| AM-U-14S1B-BN | 1/4-28 inch UNF by 1/16 inch Black Nylon Single Barbed Swivel |
| AM-U-14S1B-RD | 1/4-28 inch UNF by 1/16 inch Red Nylon Single Barbed Swivel |
| AM-U-14S1B-BL | 1/4-28 inch UNF by 1/16 inch Blue Nylon Single Barbed Swivel |
| AM-U-14S1B-GN | 1/4-28 inch UNF by 1/16 inch Green Nylon Single Barbed Swivel |
| AM-U-14S2B-NP | 1/4-28 inch UNF by 1/8 inch Nylon over Polypropylene Single Barbed Swivel |
| AM-U-14S2B-PVDF | 1/4-28 inch UNF by 1/8 inch Nylon over PVDF Single Barbed Swivel |
| AM-U-14S2B-WN | 1/4-28 inch UNF by 1/8 inch White Nylon Single Barbed Swivel |
| AM-U-14S2B-BN | 1/4-28 inch UNF by 1/8 inch Black Nylon Single Barbed Swivel |
| AM-U-14S2B-RD | 1/4-28 inch UNF by 1/8 inch Red Nylon Single Barbed Swivel |
| AM-U-14S2B-BL | 1/4-28 inch UNF by 1/8 inch Blue Nylon Single Barbed Swivel |
| AM-U-14S2B-GN | 1/4-28 inch UNF by 1/8 inch Green Nylon Single Barbed Swivel |
| AM-U-14S332B-NPP | 1/4-28 inch UNF by 3/32 inch Natural Polypropylene Single Barbed Swivel |
| AM-U-14S332B-WNP | 1/4-28 inch UNF by 3/32 inch Nylon over Polypropylene Single Barbed Swivel |
| AM-U-14S332B-BN | 1/4-28 inch UNF by 3/32 inch Black Nylon Single Barbed Swivel |
| AM-U-14S332B-PVDF | 1/4-28 inch UNF by 3/32 inch Nylon over PVDF Single Barbed Swivel |
| AM-U-14S332B-RD | 1/4-28 inch UNF by 3/32 inch Red Nylon Single Barbed Swivel |
| AM-U-14S332B-BL | 1/4-28 inch UNF by 3/32 inch Blue Nylon Single Barbed Swivel |
| AM-U-14S332BGN | 1/4-28 inch UNF by 3/32 inch Green Nylon Single Barbed Swivel |
