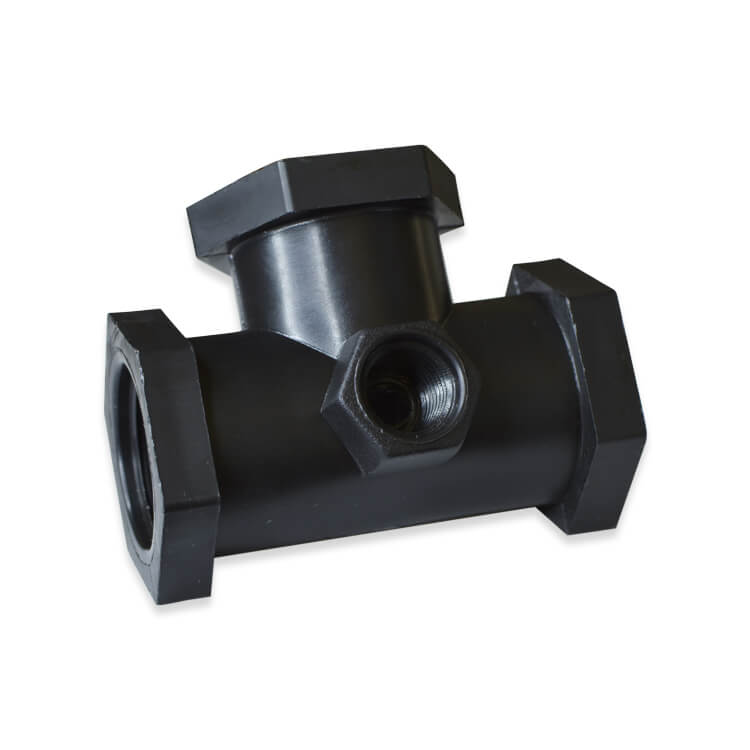

Female Pipe Tees and Gauge Port Tees
FTG Series
Description
The FTG Series are female pipe Tees and Gauge Port Tees. Available in Natural Nylon or Black Polypropylene. The equal FNPT threads sizes available in the Tees are 1/4 inch to 3 inches. The 3/8-inch and 3-inch tees are only available in Black Polypropylene. The Gauge Port Tees are available in 1/2-inch to 2-inch FNPT threads. The 3/4 inch Gauge Port tee has a 1/4 inch or a 1/8 inch port. All other gauge port sizes have 1/4-inch ports. Also available in PTFE and natural Polypropylene.
| SKU | Description |
|---|---|
| FTG-4 | 1/4 FNPT Pipe Tee |
| FTG-6 | 3/8 FNPT Pipe Tee |
| FTG-8 | 1/2 FNPT Pipe Tee |
| FTG-12 | 3/4 FNPT Pipe Tee |
| FTG-16 | 1 inch FNPT Pipe Tee |
| FTG-20 | 1-1/4 inch FNPT Pipe Tee |
| FTG-24 | 1-1/2 inch FNPT Pipe Tee |
| FTG-32 | 2 inch FNPT Pipe Tee |
| FTG-48 | 3 inch FNPT Pipe Tee |
| FTG-8-G4 | 1/2 FNPT Pipe Tee with 1/4 FNPT Gauge Port |
| FTG-12-G2 | 3/4 FNPT Pipe Tee with 1/8 FNPT Gauge Port |
| FTG-12-G4 | 3/4 FNPT Pipe Tee with 1/4 FNPT Gauge Port |
| FTG-16-G4 | 1 inch FNPT Pipe Tee with 1/4 FNPT Gauge Port |
| FTG-20-G4 | 1-1/4 inch FNPT Pipe Tee with 1/4 FNPT Gauge Port |
