Push-to-Connect Flow Control Valve
DEFV Series
Description

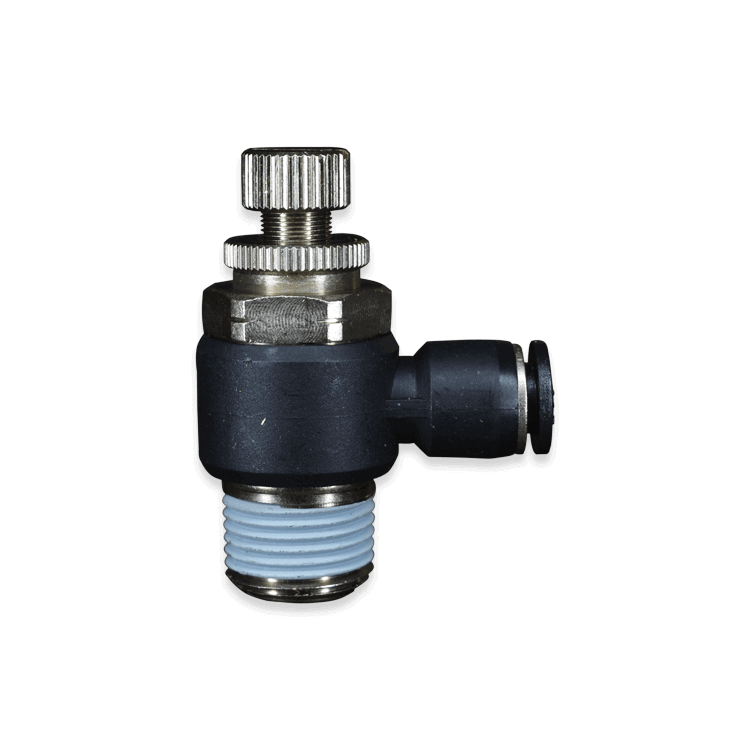

The DEFV series is a Push-to-Connect Flow Control Valve Elbow made with nickel-plated threads and a stem with a PBT body. Standard controls flow out but checks the flow back. Also, these valves needle the flow from the tube and check the flow back through the tubing line. They are equipped with a single push-to-connect port at a 90˚ angle to the male thread. Furthermore, thread sizes are 10-32, 1/8”, 1/4″, 3/8” and 1/2″.
| SKU | DESCRIPTION |
|---|---|
| DEFV-10U18P | 10-32 by 1/8 OD Push-to-Connect Elbow Flow Control |
| DEFV-10U532P | 10-32 by 5/32 OD Push-to-Connect Elbow Flow Control |
| DEFV-10U316P | 10-32 by 3/16 OD Push-to-Connect Elbow Flow Control |
| DEFV-10U14P | 10-32 by 1/4 OD Push-to-Connect Elbow Flow Control |
| DEFV-10U516P | 10-32 by 5/16 OD Push-to-Connect Elbow Flow Control |
| DEFV-2M18P | 1/8 MNPT by 1/8 OD Push-to-Connect Elbow Flow Control |
| DEFV-2M532P | 1/8 MNPT by 5/32 OD Push-to-Connect Elbow Flow Control |
| DEFV-2M316P | 1/8 MNPT by 3/16 OD Push-to-Connect Elbow Flow Control |
| DEFV-2M14P | 1/8 MNPT by 1/4 OD Push-to-Connect Elbow Flow Control |
| DEFV-2M516P | 1/8 MNPT by 5/16 OD Push-to-Connect Elbow Flow Control |
| DEFV-4M532P | 1/4 MNPT by 5/32 OD Push-to-Connect Elbow Flow Control |
| DEFV-4M316P | 1/4 MNPT by 3/16 OD Push-to-Connect Elbow Flow Control |
| DEFV-4M14P | 1/4 MNPT by 1/4 OD Push-to-Connect Elbow Flow Control |
| DEFV-4M516P | 1/4 MNPT by 5/16 OD Push-to-Connect Elbow Flow Control |
| DEFV-4M38P | 1/4 MNPT by 3/8 OD Push-to-Connect Elbow Flow Control |
| DEFV-4M12P | DEFV-4M12P 1/4 MNPT by 1/2 OD Push-to-Connect Elbow Flow Control |
| DEFV-6M316P | DEFV-6M316P 3/8 MNPT by 3/16 OD Push-to-Connect Elbow Flow Control |
| DEFV-6M14P | DEFV-6M14P 3/8 MNPT by 1/4 OD Push-to-Connect Elbow Flow Control |
| DEFV-6M516P | 3/8 MNPT by 5/16 OD Push-to-Connect Elbow Flow Control |
| DEFV-6M38P | 3/8 MNPT by 3/8 OD Push-to-Connect Elbow Flow Control |
| DEFV-6M12P | 3/8 MNPT by 1/2 OD Push-to-Connect Elbow Flow Control |
| DEFV-8M516P | 1/2 MNPT by 5/16 OD Push-to-Connect Elbow Flow Control |
| DEFV-8M38P | 1/2 MNPT by 3/8 OD Push-to-Connect Elbow Flow Control |
