Description

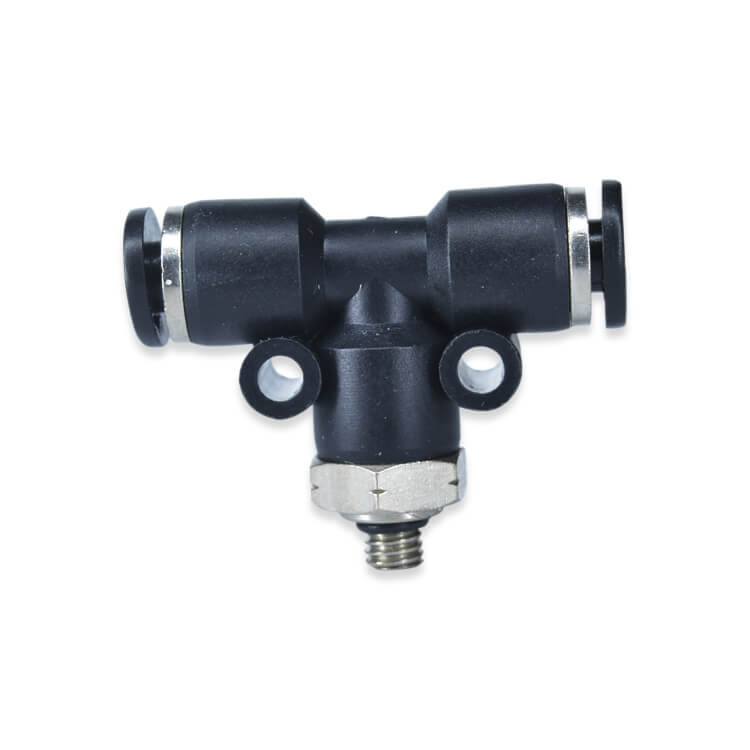

Push-to-connect Male Branch Swivel Tee with male NPT and UNF threads. The working pressure is 150 psi, and the temperature range is 32˚ F to 140˚ F. Also, this series is made of PBT resin, Nickel nickel-plated brass with a Buna-N O-ring, and a Stainless Steel grip ring. For use with compressed air and inert gases. This fitting is also available in metric sizes.
| SKU | DESCRIPTION |
|---|---|
| PEMT-10U14P | 10-32 Male UNF by 1/4 OD PBT Tee |
| PEMT-10U18P | 10-32 Male UNF by 1/8 OD PBT Tee |
| PEMT-10U316P | 10-32 Male UNF by 3/16 OD PBT Tee |
| PEMT-10U532P | 10-32 Male UNF by 5/32 OD PBT Tee |
| PEMT-1M14P | 1/16 MNPT by 1/4 OD PBT Tee |
| PEMT-1M18P | 1/16 MNPT by 1/8 OD PBT Tee |
| PEMT-1M532P | 1/16 MNPT by 5/32 OD PBT Tee |
| PEMT-2M14P | 1/8 MNPT by 1/4 OD PBT Tee |
| PEMT-2M18P | 1/8 MNPT by 1/8 OD PBT Tee |
| PEMT-2M316P | 1/8 MNPT by 3/16 OD PBT Tee |
| PEMT-2M38P | 1/8 MNPT by 3/8 OD PBT Tee |
| PEMT-2M516P | 1/8 MNPT by 5/16 OD PBT Tee |
| PEMT-2M532P | 1/8 MNPT by 5/32 OD PBT Tee |
| PEMT-4M12P | 1/4 MNPT by 1/2 OD PBT Tee |
| PEMT-4M14P | 1/4 MNPT by 1/4 OD PBT Tee |
| PEMT-4M18P | 1/4 MNPT by 1/8 OD PBT Tee |
| PEMT-4M12P | 1/4 MNPT by 1/2 OD PBT Tee |
| PEMT-4M14P | 1/4 MNPT by 1/4 OD PBT Tee |
| PEMT-4M18P | 1/4 MNPT by 1/8 OD PBT Tee |
| PEMT-4M316P | 1/4 MNPT by 3/16 OD PBT Tee |
| PEMT-4M38P | 1/4 MNPT by 3/8 OD PBT Tee |
| PEMT-4M516P | 1/4 MNPT by 5/16 OD PBT Tee |
| PEMT-4M532P | 1/4 MNPT by 5/32 OD PBT Tee |
| PEMT-4R-4MM | 1/4 R MNPT by 4 mm OD PBT Tee |
| PEMT-4R-6MM | 1/4 R MNPT by 6 mm OD PBT Tee |
| PEMT-4R-8MM | 1/4 R MNPT by 8 mm OD PBT Tee |
| PEMT-6M12P | 3/8 MNPT by 1/2 OD PBT Tee |
| PEMT-6M14P | 3/8 MNPT by 1/4 OD PBT Tee |
| PEMT-6M316P | 3/8 MNPT by 3/16 OD PBT Tee |
| PEMT-6M38P | 3/8 MNPT by 3/8 OD PBT Tee |
| PEMT-8M12P | 1/2 MNPT by 1/2 OD PBT Tee |
| PEMT-8M38P | 1/2 MNPT by 3/8 OD PBT Tee |
| PEMT-8R-8MM | 1/2 R MNPT by 8 mm OD PBT Tee |
