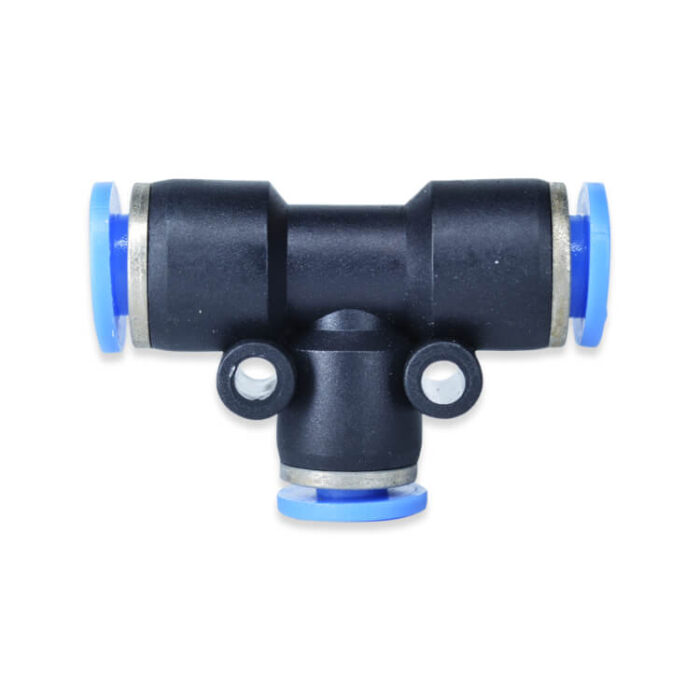

Push-To-Connect Reducer Tee
PUTR Series
Description
Union Tee fitting with 2 push-to-connect ports of equal sizes and 1 push-to-connect port that is a reducer located 90˚ apart. The body is PBT resin. The working pressure is 150 psi and the temperature range is 32˚ F to 140˚ F. For use with compressed air and inert gases.
| SKU | DESRIPTION |
|---|---|
| PUTR-12-38P | 1/2 OD by 3/8 OD PBT Reducing Tee |
| PUTR-12-516P | 1/2 OD by 5/16 OD PBT Reducing Tee |
| PUTR-14-18P | 1/4 OD by 1/8 OD PBT Reducing Tee |
| PUTR-14-316P | 1/4 OD by 3/16 OD PBT Reducing Tee |
| PUTR-316-532P | 3/16 OD by 5/32 OD PBT Reducing Tee |
| PUTR-38-14P | 1/4 OD by 3/8 OD PBT Reducing Tee |
| PUTR-38-516P | 3/8 OD by 5/16 OD PBT Reducing Tee |
| PUTR-4532P | 1/4 OD by 5/32 OD PBT Reducing Tee |
| PUTR-516-14P | 5/16 OD by 1/4 OD PBT Reducing Tee |
| PUTR-516-532P | 5/16 OD by 5/32 OD PBT Reducing Tee |
