Threaded Push To Connect w. Hex Nut
316 Stainless Steel
Threaded Push To Connect w. Hex Nut
316 Stainless Steel

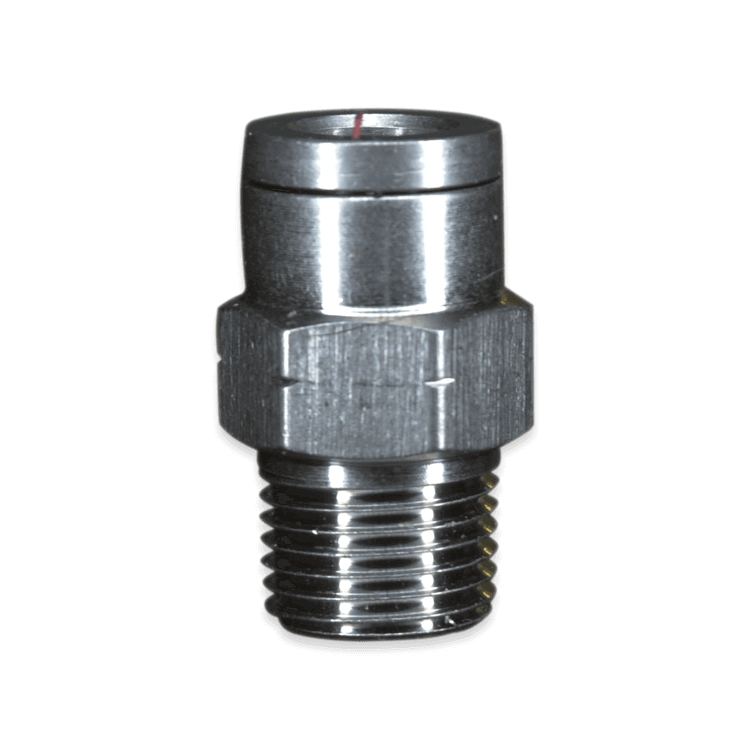

TCM Series are Straight Connectors made of 316 Stainless Steel. One end is smooth for easy attachment of tubing and the other has male threads below a hex nut for tightening. Also, it has a working pressure of 290 psi and a temperature range of -4˚ F to 302˚ F. The sterilization temperature is up to 280° F. The O-Ring is Viton®. BSPT is also available.
SKU | DESCRIPTION |
---|---|
TCM-10-532P-SS | 10-32 UNF Male by 5/32 OD 316 Stainless Steel Push-to-Connect |
TCM-2M-14P-SS | 1/8 MNPT by 1/4 OD 316 Stainless Steel Push-to-Connect |
TCM-2M-316P-SS | 1/8 MNPT by 3/16 OD 316 Stainless Steel Push-to-Connect |
TCM-2M-516P-SS | 1/8 MNPT by 5/16 OD 316 Stainless Steel Push-to-Connect |
TCM-2M-532P-SS | 1/8 MNPT by 5/32 OD 316 Stainless Steel Push-to-Connect |
TCM-4M-316P-SS | 1/4 MNPT by 3/16 OD 316 Stainless Steel Push-to-Connect |
TCM-4M-4P-SS | 1/4 MNPT by 1/4 OD 316 Stainless Steel Push-to-Connect |
TCM-4M-5P-SS | 1/4 MNPT by 5/16 OD 316 Stainless Steel Push-to-Connect |
TCM-4M-6P-SS | 1/4 MNPT by 3/8 OD 316 Stainless Steel Push-to-Connect |
TCM-4M-8P-SS | 1/4 MNPT by 1/2 OD 316 Stainless Steel Push-to-Connect |
TCM-6M-6P-SS | 3/8 MNPT by 3/8 OD 316 Stainless Steel Push-to-Connect |
TCM-6M-8P-SS | 3/8 MNPT by 1/2 OD 316 Stainless Steel Push-to-Connect |
TCM-8M-6P-SS | 1/2 MNPT by 3/8 OD 316 Stainless Steel Push-to-Connect |
TCM-8M-8P-SS | 1/2 MNPT by 1/2 OD 316 Stainless Steel Push-to-Connect |
