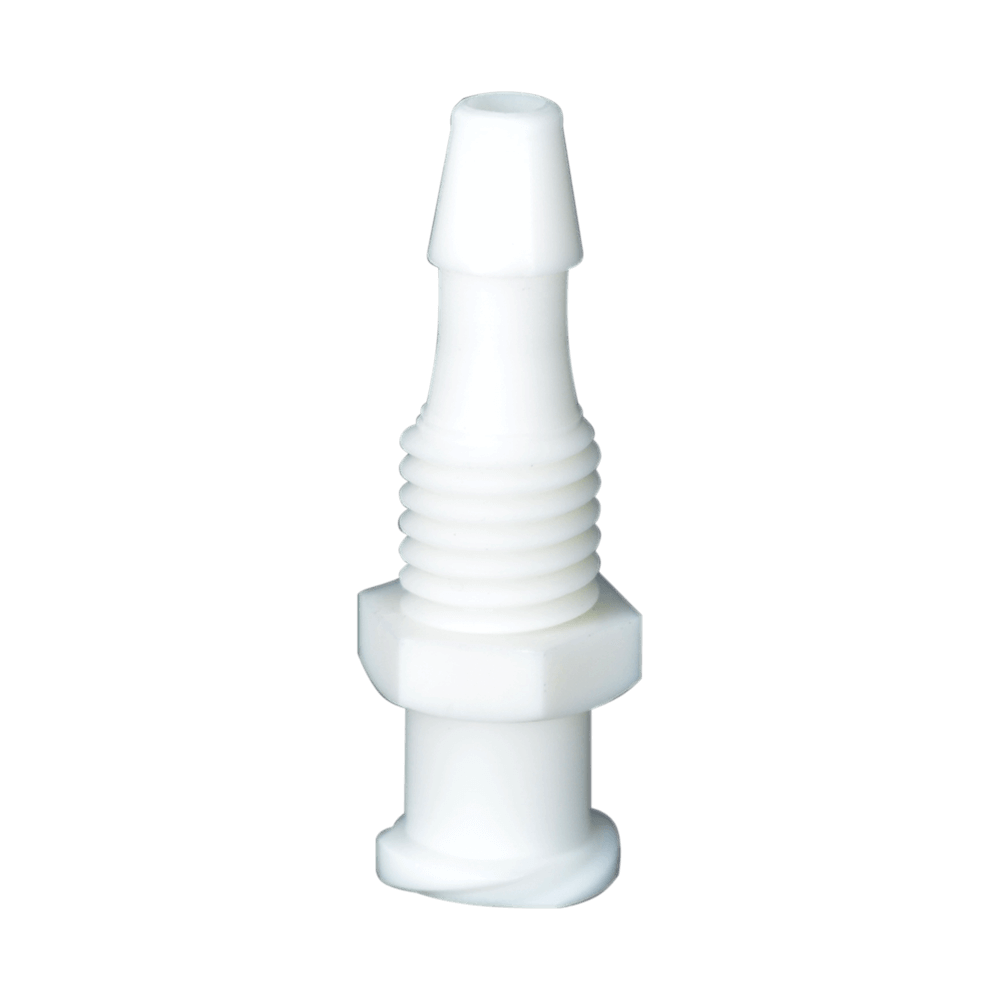

Panel Mount Female Luer Lock
FLLPC Panel Mount Series
Category: Luers
Tags: Female Luer Lock, Hose Barb Fitting, Nylon, Panel Mount, Plastic, Polycarbonate, Polypropylene
Description
The FLLPC Series is a Panel-mounted female luer lock with a hose barb fitting. Panel mount threads are 1/4-28. The barbs on the inside of the panel are 1/16”, 3/32” and 1/8”. This luer lock is made of white and black Nylon, natural Polypropylene, clear polycarbonate, and PVDF. Optional color-coded panel rings and nuts are available.
SKU | DESCRIPTION |
---|---|
FLLPC-S-1B | Female Luer Lock to 1/16 Barb Bulkhead |
FLLPC-S-2B | Female Luer Lock to 1/8 Barb Bulkhead |
FLLPC-S-332B | Female Luer Lock to 3/32 Barb Bulkhead |
