Description

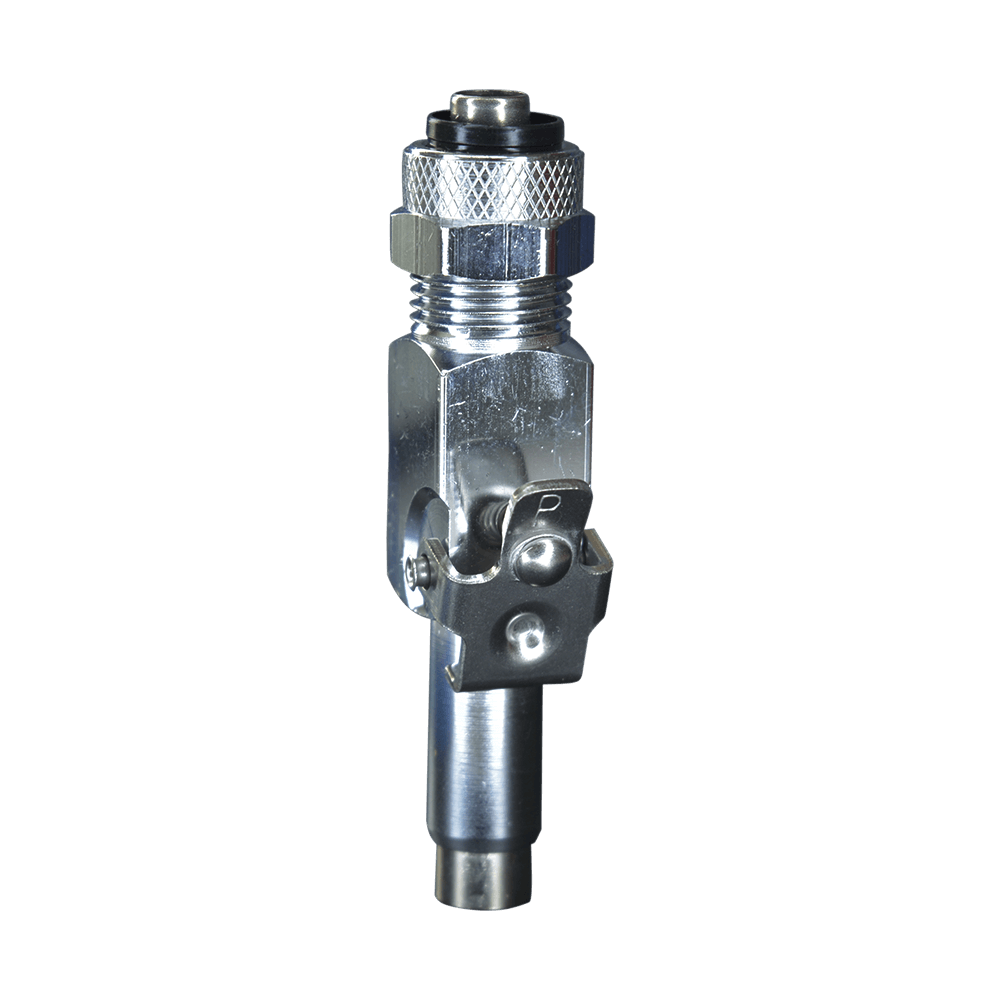

QCPV Series is a 316 Stainless Valve Steel Shut-off Coupler with a Compression connection to a Plug-in Stem. The OD sizes are 1/4″ and 3/8″. The temperature range is 0° F to 150° F. In fact, the maximum working pressure is 150psi. Also, this Coupler works well with Polyethylene, Nylon, Polypropylene, or Vinyl Tubing. This coupler is also available in Chrome-Plated Brass. The nuts will rotate around the sleeve to prevent twisting the plastic tubing.
| SKU | DESCRIPTION |
|---|---|
| QC-4SV-4-SS | SS 1/4" O.D Tubing x 1/4" OD Tubing Valved |
| QC-4SV-4-NPB | NP Brass 1/4" OD Tubing x 1/4" OD Tubing Valved |
| QC-6SV-6-SS | SS 3/8" O.D Tubing x 3/8" O.D Tubing Valved |
| QC-6SV-6-NPB | NP Brass 3/8" O.D Tubing x 3/8" O.D Tubing Valved |
