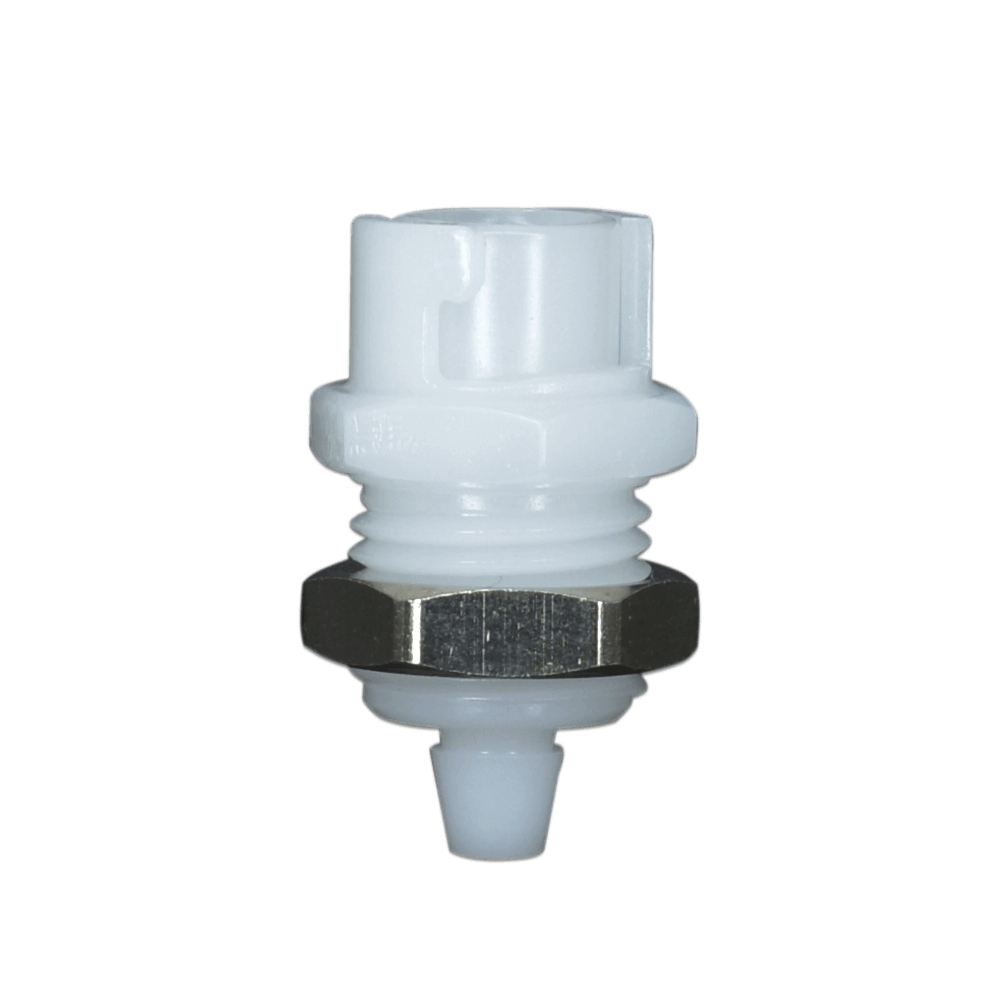

Acetal Panel Mount Hose Barb Socket with Twist Lock
10AC S3 Panel Mount Series
Description
1/16 Flow Panel Mounts Socket are available with Valved or Non-Valved connections. 1/16 and 1/8 Barb Size provided in Natural or Black Acetal. For use with 10AC PB2 series Plugs.
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| 10AC-S3-01 | 10ACV-SB3-01 | 1/16" ID | 1.6 MM ID | .90" | .50" | .58" |
| 10AC-S3-01BLK | 10ACV-SB3-01BLK | 1/16" ID | 1.6 MM ID | .90" | .50" | .58" |
| 10AC-S3-02 | 10ACV-SB3-02 | 1/8" ID | 3.2 MM ID | .90" | .50" | .58" |
| 10AC-S3-02BLK | 10ACV-SB3-02BLK | 1/8" ID | 3.2 MM ID | .90" | .50" | .58" |
