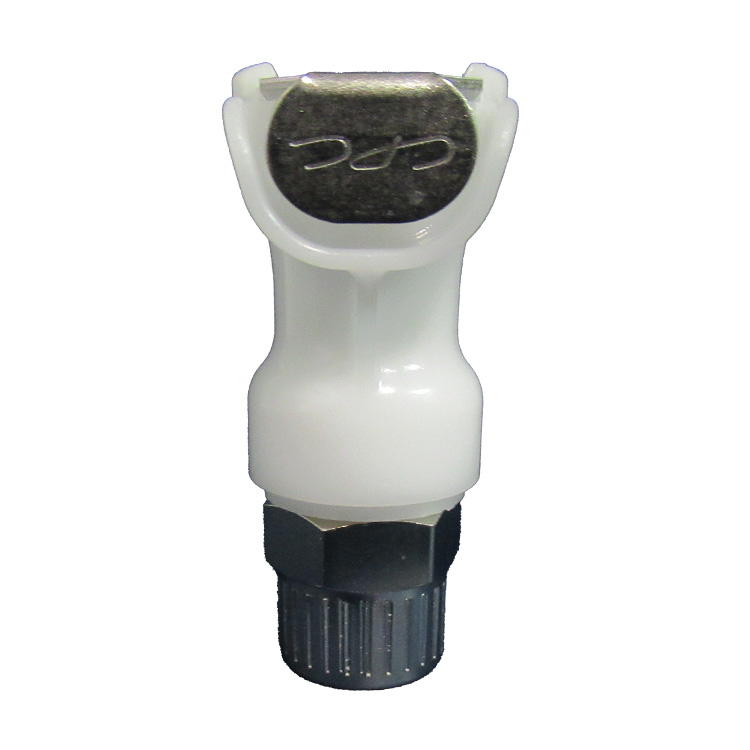

Acetal, Socket, PTF Compression Fitting
20AC S9 Series
Description
20 Series, 1/8 Flow, Socket with Compression Fitting for of 5/32, and 1/4 OD Polytube
Available with and w/o Shut off.
Stainless Steel Latch and spring. Nickel Plated Brass compression nut.
| NON-VALVED | VALVED | TUBE ID/OD | LENGTTH | WIDTH |
|---|---|---|---|---|
| 20AC-S9-025 | 20ACV-S9-025 | 3/64 ID/ 5/32 OD | 1.65 | .62 |
| 20AC-S9-04 | 20ACV-S9-04 | .170 ID/ .250 OD | 1.75 | .62 |
