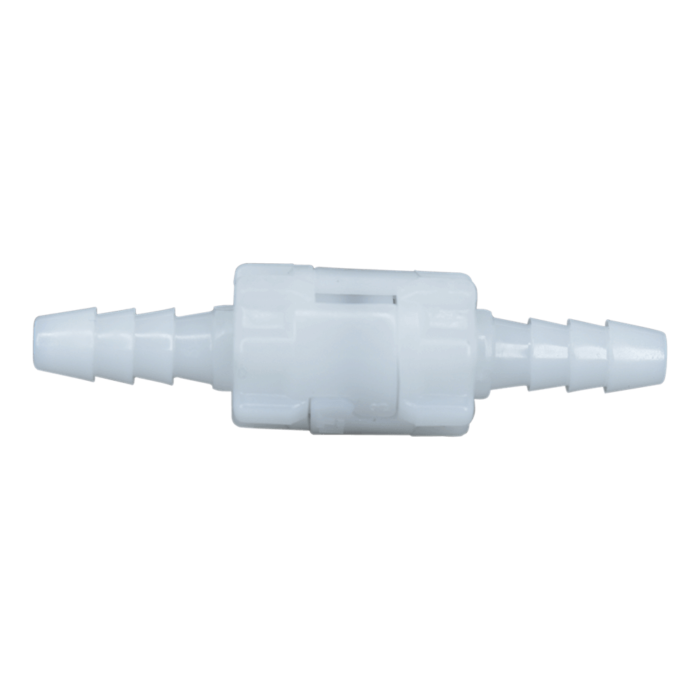

Inline Hose Barb Coupling
10AC2 In Line Series
Description
1/16 Flow, complete inline coupler with 1/16 or 1/8 Barb Sizes or can be 1/16 to 1/8 sizes upon request. Natural or Black Acetal in valved or non-valved combination.
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| 10AC2-01 | 10ACV2-01 | 1/16" ID | 1.6 MM ID | 1.46" | .48" | .48" |
| 10AC2-01BLK | 10ACV2-01BLK | 1/16" ID | 1.6 MM ID | 1.46" | .48" | .48" |
| 10AC2-02 | 10ACV2-02 | 1/8" ID | 3.2 MM ID | 1.61" | .48" | .48" |
| 10AC2-02BLK | 10ACV2-02BLK | 1/8" ID | 3.2 MM ID | 1.61" | .48" | .48" |
