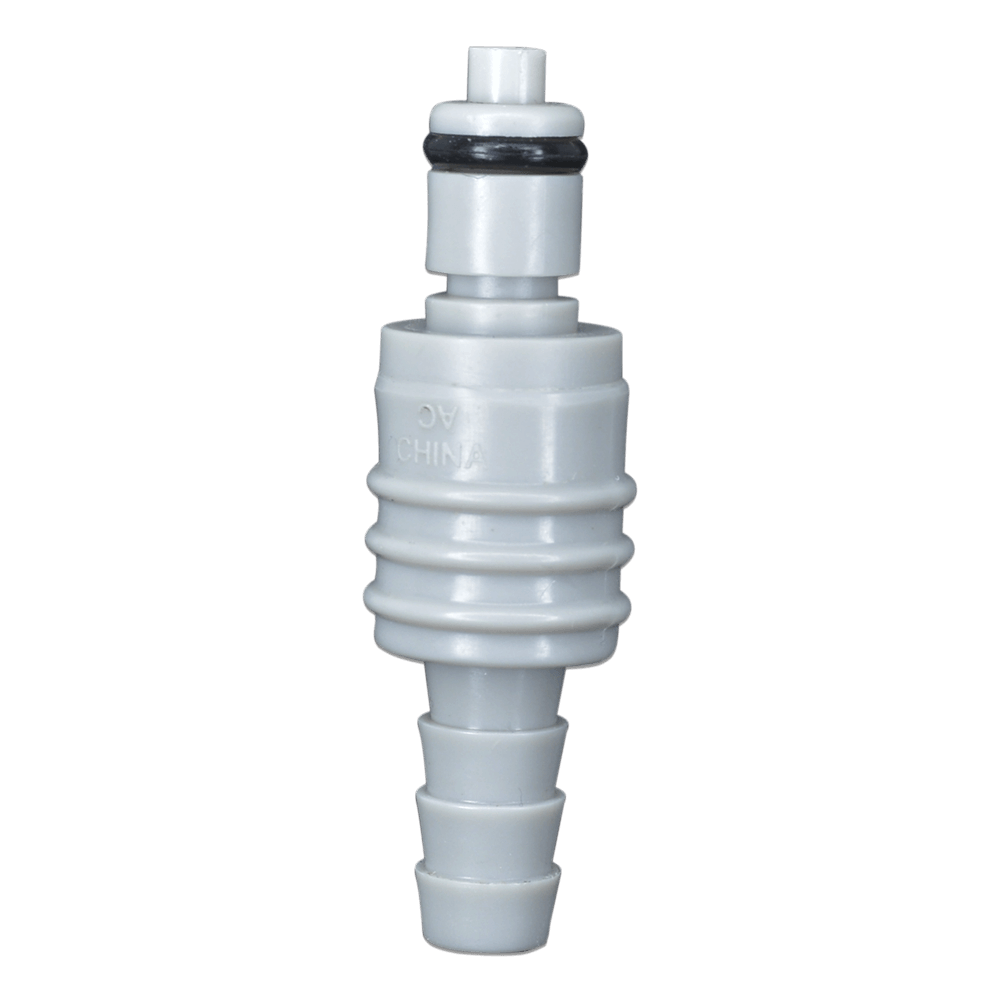

Grey Polypropylene In-Line Hose Barb Plug
20PP PE2 Series
Description
The 20PP PE2 Series is made from medical-grade gamma sterilizable polypropylene, offering greater chemical resistance. In addition, this material has a temperature range of 32°F to 160°F and a max operating pressure of 120psi.
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | L(nv/v) | WIDTH | LENGTH |
|---|---|---|---|---|---|---|
| 20PP-PE2-01 | 20PPV-PE2-01 | 1/16" ID | 1.6 MM ID | .80"/1.48" | .55" | .55" |
| 20PP-PE2-01MALD | 20PPV-PE2-01MALD | 1/16" ID | 1.6 MM ID | .80"/1.48" | .55" | .55" |
| 20PP-PE2-02 | 20PPV-PE2-02 | 1/8" ID | 3.2 MM ID | .97"/1.65" | .55" | .55" |
| 20PP-PE2-02MALD | 20PPV-PE2-02MALD | 1/8" ID | 3.2 MM ID | .97"/1.65" | .55" | .55" |
| 20PP-PE2-04 | 20PPV-PE2-04 | 1/4" ID | 6.4 MM ID | 1.12"/1.80" | .55" | .55" |
| 20PP-PE2-04MALD | 20PPV-PE2-04MALD | 1/4" ID | 6.4 MM ID | 1.12"/1.80" | .55" | .55" |
| 40PP-PE2-04 | 40PPV-PE2-04 | 1/4" ID | 6.4 MM ID | 1.25"/1.94" | .70" | .70" |
| 40PP-PE2-04MALD | 40PPV-PE2-04MALD | 1/4" ID | 6.4 MM ID | 1.25"/1.94" | .70" | .70" |
| 40PP-PE2-06 | 40PPV-PE2-06 | 3/8" ID | 9.5 MM ID | 1.25"/1.83" | .70" | .70" |
| 40PP-PE2-06MALD | 40PPV-PE2-06MALD | 3/8" ID | 9.5 MM ID | 1.25"/1.83" | .70" | .70" |
| 50PPX-PE2-04 | 50PPV-PE2-04 | 1/4" ID | 6.4 MM ID | 1.89"/2.04" | .70" | .70" |
| 50PPX-PE2-06 | 50PPV-PE2-06 | 3/8" ID | 9.5 MM ID | 1.76"/1.91" | .70" | .70" |
