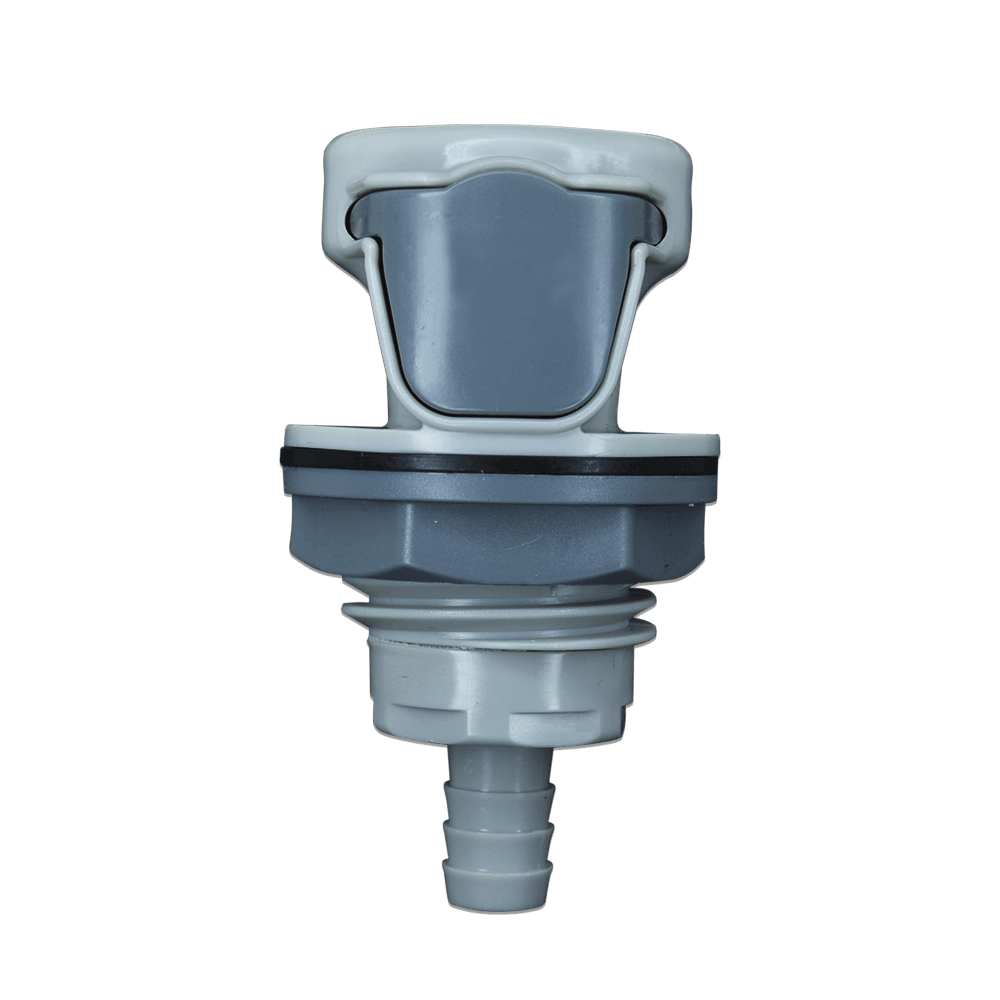

Panel Mount Hose Barb Socket (Gasket Seal Included)
50PPV SE3 Series
Categories: Couplers, Plastic Quick Couplers, Polypropylene Quick Connects
Tags: Gasket Seal, Hose Barb, Panel Mount, Plastic, Polypropylene, Thumb-Latch
Description
The 50PPV SE3 Series is made with a medical grade, gamma sterilizable polypropylene these couplers are ideal for medical applications where greater chemical resistance is needed. In addition, this coupler has a plastic thumb latch for a comfortable release every time!
VALVED | TUBE SIZE | METRIC TUBE | LENGTH | WIDTH | HEIGHT |
---|---|---|---|---|---|
50PPV-SE3-04 | 1/4" ID | 6.4 MM ID | 2.14" | 1.00" | .94" |
50PPV-SE3-06 | 3/8" ID | 9.5 MM ID | 2.14" | 1.00" | .94" |
PANEL MOUNT SOCKET SEALING GASKET
PART NO. | MATERIAL | DIAMETER | THICKNESS |
---|---|---|---|
C11376 | EPDM | 1.00" OD | .08" |
