Description

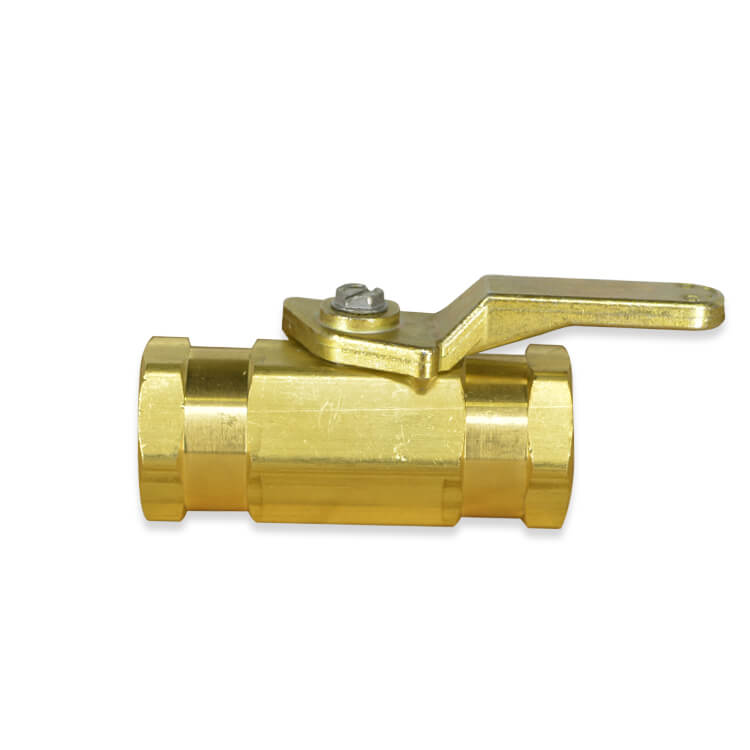

The Inline Two-Way Brass Ball Valve has a maximum operating pressure of 500 psi and a maximum operating temperature of 180˚  F.

Inlet sizes are 1/4″, 5/16”, and 3/8” Barb, 1/4” Compression fitting, 1/4″ female threads, 1/8” and 1/4″ male threads, and 11/16” male nozzle.

The outlet sizes are 1/4″ and 3/8” barb, 1/4” and 3/8” Compression, 1/4″ female threads, and 1/8” and 1/4″ male threads.

These valves are not panel mountable. The handle rests over the inlet side but the reverse configuration is available. The standard through hole is .218  but the 3/8” sizes have a .312 through hole.




SKUDefinition
BBV-4F4M1/4 FNPT by 1/4 MNPT
BBV-4F4F 1/4 FNPT by 1/4 FNPT
BBV-4F4B1/4 FNPT by 1/4 Barb
BBV-4F2M 1/4 FNPT by 1/8 MNPT
BBV-4F1116M 1/4 FNPT by 11/16 MNPT
BBV-4C4M1/4 Comp by 1/4 MNPT
BBV-4C4C1/4 Comp by 1/4 Comp
BBV-4B4M1/4 Barb by 1/4 MNPT
BBV-2F2M 1/8 FNPT by 1/8 MNPT
BBV-2F2F1/8 FNPT by 1/8 FNPT
BBV-12F12F 3/4 FNPT by 3/4 FNPT
BBV-6F6F 3/8 FNPT by 3/8 FNPT with .312 through hole
BBV-6F4M 3/8 FNPT by 1/4 MNPT with .312 through hole
BBV-6C6C 3/8 Comp by 3/8 Comp
BBV-6B6M3/8 Barb by 3/8 MNPT
BBV-5PC4M
5/16 Plastic Comp by 1/4 MNPT
BBV-4PC4M 1/4 Plastic Comp by 1/4 MNPT
BBV-4M6C1/4 MNPT by 1/4 Comp
BBV-4M4M1/4 MNPT by 1/4 MNPT
BBV-4M4F1/4 MNPT by 1/4 FNPT
BBV-4M1116F 1/4 MNPT 11/16 FNPT
BBV-4FL4M1/4 Flare by 1/4 MNPT
