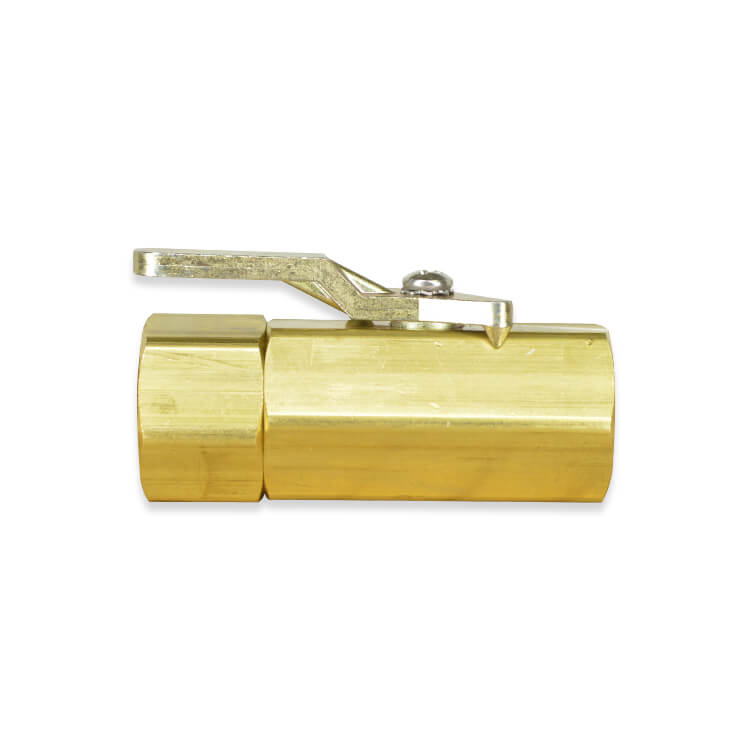

Solid Mini Ball Valve
RV2 Series
Description
This is a Solid Chrome plated Brass Mini Ball Valve. This valve works in both directions because of a double seal system. It has a blow-out-proof Brass stem. The 1/4 turn handle has a mechanical stop. The maximum working pressure is 235 psi but will handle 300 psi at 75˚F. The temperature range is 32˚F to 176˚F. Available in female by female and male by female. ***This product is not lead-free.***
| SKU | Definition |
|---|---|
| RV2-2F | 1/8 FNPT Taper Ball Valve |
| RV2-2M2F | 1/8 MNPT Taper by 1/8 FNPT Taper Ball Valve |
| RV2-4F | 1/4 FNPT Taper Ball Valve |
| RV2-6F | 3/8 FNPT Taper Ball Valve |
| RV2-8F | 1/2 FNPT Taper Ball Valve |
| RV2-2F2M | 1/8 FNPT Taper by 1/8 MNPT Taper Ball Valve |
| RV2-4F4M | 1/4 FNPT Taper by 1/4 MNPT Taper Ball Valve |
| RV2-6F6M | 3/8 FNPT Taper by 3/8 MNPT Taper Ball Valve |
