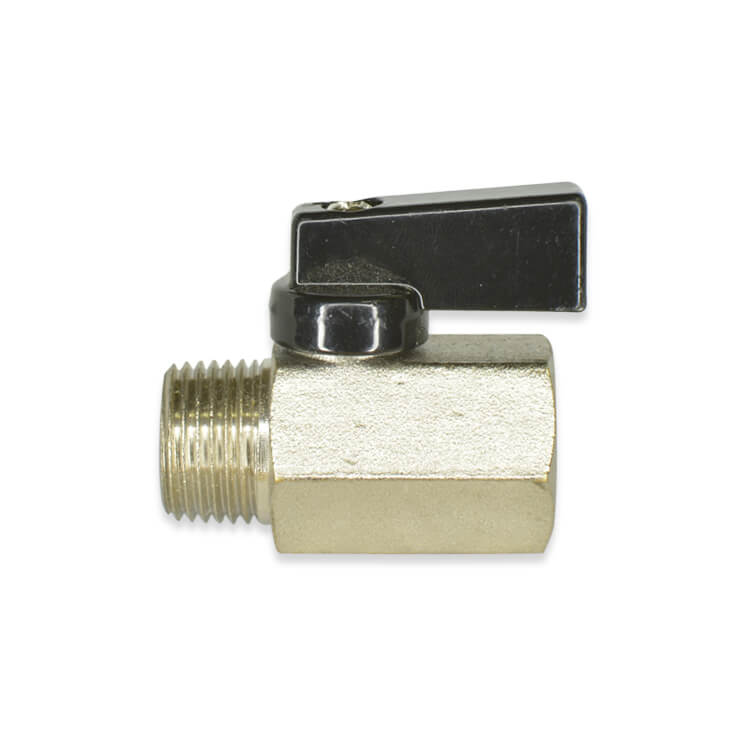

Forged Miniature Ball Valve
Chrome Plated Brass
RV5 Series
Description
This is a Chrome-plated Forged Brass Mini Ball Valve with a Chrome-plated Brass ball. The maximum working pressure is 450 psi, 142 psi at 356˚F, and 355 psi at 212˚F. Available in female by female and male by female. Available with a flag handle, a lever handle, or a tee handle, or can be adjusted with a screwdriver.
***This product is not lead-free.***
| SKU | Definition |
|---|---|
| RV5-2F | 1/8 FNPT Taper Ball Valve |
| RV5-4F | 1/4 FNPT Taper Ball Valve |
| RV5-4M4F | 1/4 MNPT Taper by FNPT Taper Ball Valve |
| RV5-6M6F | 3/8 MNPT Taper by FNPT Taper Full Port Ball Valve |
| RV5-6F | 3/8 FNPT Taper Ball Valve |
| RV5-8F | 1/2 FNPT Taper Ball Valve |
| RV5-2F2M | 1/8 FNPT Taper 1/8 MNPT Taper Ball Valve |
| RV5-4F4M | 1/4 FNPT Taper 1/4 MNPT Taper Ball Valve |
| RV5-6F6M | 3/8 FNPT Taper 3/8 MNPT Taper Ball Valve |
