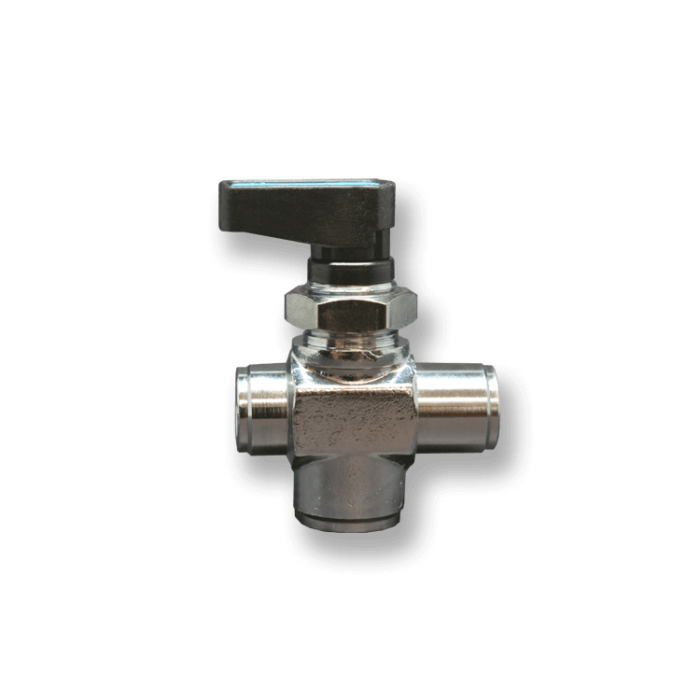

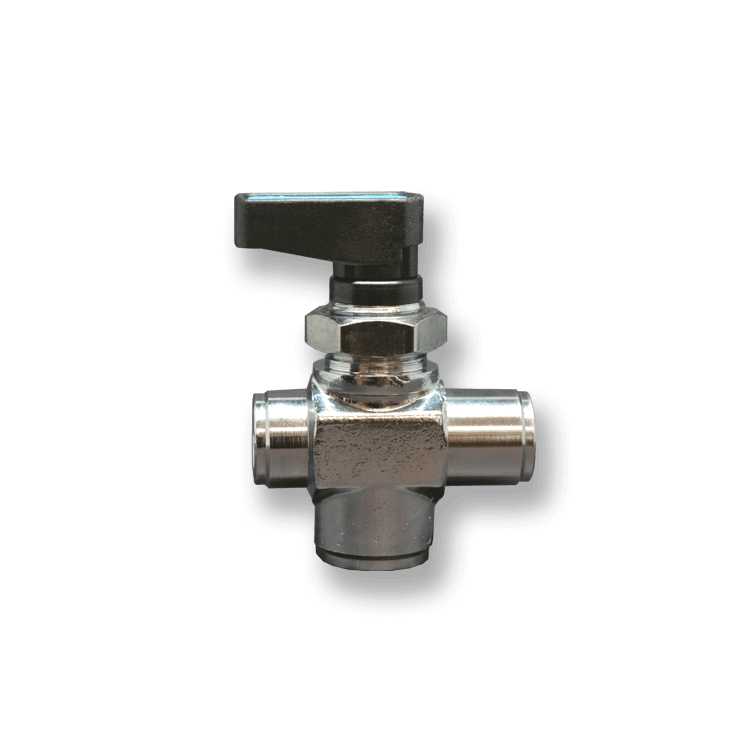

Chrome Plated Brass Ball Valves
VAMS Series
Description
Ball Valves available in inline, elbows, and 3-way tee configurations, are Chrome Plated Brass with female NPT, male NPT, and Push-to-Connect ports. They all have a temperature range of 0˚ F to 175˚ F and are recommended for air, oil, water, and gas use.
The thread sizes for the female-to-female and female-to-male valves are 1/8”, 1/4″, 3/8”, and 1/2″. The tube sizes for the Push-to-Connect valves are 1/8” by 1/8”, 1/4″ by 1/4″ and 3/8” by 3/8”.
On the male NPT by Push-to-Connect, the sizes are 5/32” tube by 1/8” MNPT, 1/4″ tube by 1/8” MNPT, 1/4″ tube by 1/4″ MNPT, and 3/8” tube by 3/8” MNPT.
The elbow and tee sizes are 1/8”, 1/4″ and 3/8”. The elbows and tees are panel-mountable and the tees are available with open or closed centers.
| SKU | Description |
|---|---|
| AMS-2-2F | 1/8 inch FNPT 2 Port Valve Closed Center Ball Valve |
| AMS-2-4F | 1/4 inch FNPT 2-Port Chrome-Plated Ball Valve |
| AMS-2-6F | 3/8 inch FNPT 2-Port Chrome-Plated Ball Valve |
| AMS-2F | 1/8 inch FNPT by 1/8 inch FNPT 2-Port Straight Ball Valve |
| AMS-2FOC | 1/8 inch FNPT by 1/8 inch FNPT Open Center 2-Port Ball Valve |
| AMS-2M | 1/8 inch MNPT by 1/8 inch FNPT 2-Port Ball Valve |
| AMS-2M532PI | 1/8 inch FNPT by 5/32 inch OD Straight Push-In 2-Port Ball Valve |
| AMS-2MF | 1/8 inch MNPT by 1/8 inch FNPT 2-Port Straight Ball Valve |
| AMS-3-2F | 1/8 inch FNPT 3-Port Valve Open Center Ball Valve |
| AMS-3-4F | 1/4 inch FNPT 3-Port Ball Valve |
| AMS-3-6F | 3/8 inch FNPT 3-Port Ball Valve |
| AMS-L-2F | 1/8 inch FNPT 90 degree Elbow Ball Valve PM |
| AMS-L-4F | 1/4 inch FNPT 90 degree Elbow Ball Valve PM |
| AMS-L-6F | 3/8 inch FNPT 90 degree Elbow Ball Valve PM |
