Description

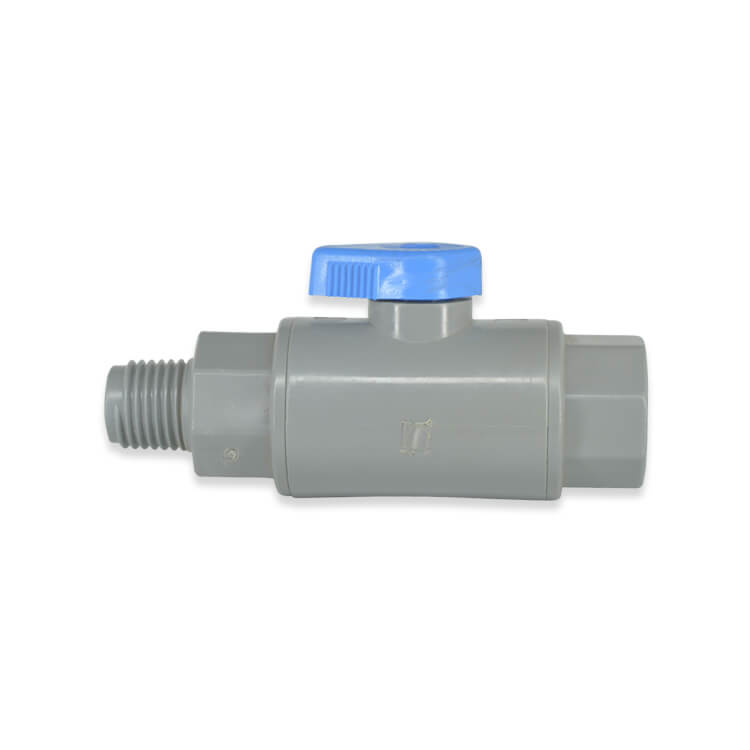

The EBV Series One-Way single-direction Flow 90-degree Ball Valve is made of PVC with standard Buna seals. Maximum pressure 125 psi and 140 degrees F and a thru-hole of .437 used for air, water, gas, oxygen, and refrigeration applications. (not for vacuum)
| SKU | Description |
|---|---|
| EBV-4B | 1/4 Barb Ball Valve |
| EBV-6B | 3/8 Barb Ball Valve |
| EBV-8B | 1/2 Barb Ball Valve |
| EBV-4F | 1/4 FNPT Ball Valve |
| EBV-6F | 3/8 FNPT Ball Valve |
| EBV-8F | 1/2 FNPT Ball Valve |
| EBV-4F-4B | 1/4 FNPT by 1/4 Barb Ball Valve |
| EBV-6F-6B | 3/8 FNPT by 3/8 Barb Ball Valve |
| EBV-8F-8B | 1/2 FNPT by 1/2 Barb Ball Valve |
| EBV-4M | 1/4 MNPT Ball Valve |
| EBV-6M | 3/8 MNPT Ball Valve |
| EBV-8M | 1/2 MNPT Ball Valve |
| EBV-4M-4B | 1/4 MNPT by 1/4 Barb Ball Valve |
| EBV-6M-6B | 3/8 MNPT by 3/8 Barb Ball Valve |
| EBV-8M-8B | 1/2 MNPT by 1/2 Barb Ball Valve |
| EBV-4P-4B | 1/4 Push-to-Connect by 1/4 Barb Ball Valve |
| EBV-6P-6B | 3/8 Push-to-Connect by 3/8 Barb Ball Valve |
| EBV-8P-8B | 1/2 Push-to-Connect by 1/2 Barb Ball Valve |
| EBV-4C-4B | 1/4 Comp by 1/4 Barb Ball Valve |
| EBV-6C-6B | 3/8 Comp by 3/8 Barb Ball Valve |
| EBV-8C-8B | 1/2 Comp by 1/2 Barb Ball Valve |
