Description

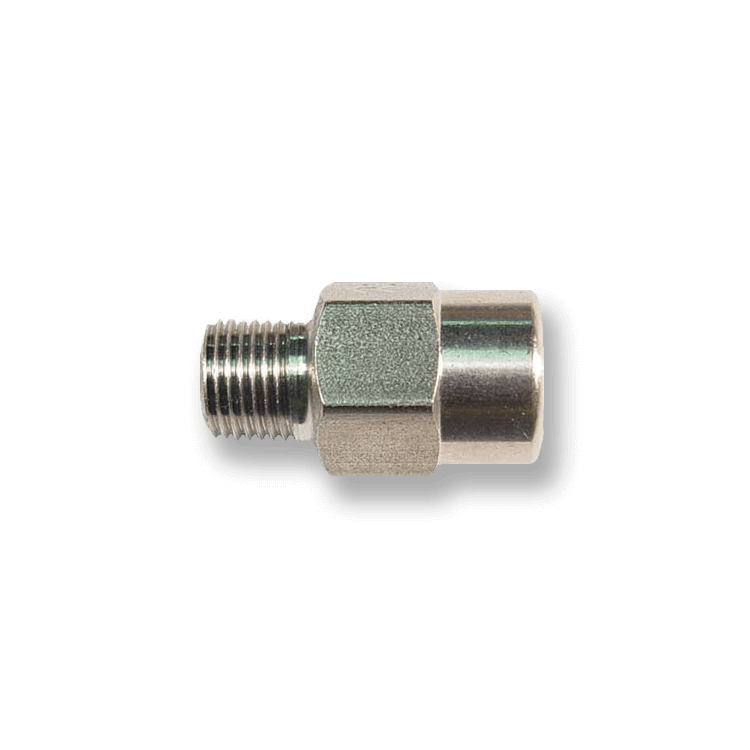

The PSCV Series Brass or Stainless Steel Piston Check Valves ensures a positive bubble-tight seal. They have a cracking pressure of 1 psi, a maximum pressure of 500 psi, and a maximum working temperature of 250˚ F. The standard unit is Brass with a 302 Stainless Steel spring and Steel retainer. Optional springs of 3, 5, 9, 15, 20, 25 psi. Also available in a 316 Stainless Steel body (shown) with a Hastelloy® spring. 1, 3, 15, and 25 psi. Seals available are Buna, EPDM, or FKM.
| SKU | Description |
|---|---|
| PSCV-12F | 1/2 FNPT Brass Piston Check Valve with Buna Seal |
| PSCV-14F | 1/4 FNPT Brass Piston Check Valve with Buna Seal |
| PSCV-14FM | 1/4 FNPT 1/4 MNPT Brass Piston Check Valve |
| PSCV-14M | 1/4 MNPT Brass Piston Check Valve |
| PSCV-18F | 1/8 FNPT Brass Piston Check Valve |
| PSCV-18FM | 1/8 FNPT 1/8 MNPT Brass Piston Check Valve |
| PSCV-18M | 1/8 MNPT Brass Piston Check Valve |
| PSCV-34F | 3/4 FNPT Brass Piston Check Valve |
| PSCV-38F | 3/8 FNPT Brass Piston Check Valve |
| PSCV-38FM | 3/8 FNPT 3/8 MNPT Brass Piston Check Valve |
| PSCV-18F-SS | 1/8 FNPT 316 Stainless Steel Piston Check Valve |
| PSCV-18FM-SS | 1/8 FNPT 1/8 MNPT 316 Stainless Steel Piston Check Valve |
| PSCV-34F-SS | 3/4 FNPT 316 Stainless Steel Piston Check Valve |
