Acrylic Diaphragm Poppet Check Valves
CIS Series
Description

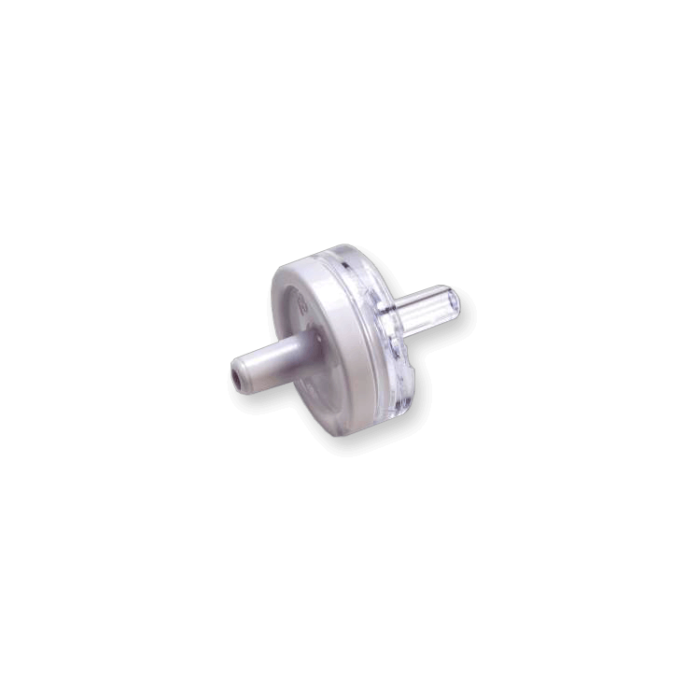

This is a non-barbed Check Valve with a white tubing port inlet and clear tubing port outlet. The body is made of Acrylic with a blue Silicone diaphragm. This check valve is pressure-rated at 45 psi. The port sizes are both .130″ and will accommodate 1/16″ ID soft Silicone tubing as well as other tubing of 1/8″ and 3/32″ ID. It is manufactured in an ISO Class 8 Cleanroom and is Gamma, E-beam, and EtO sterilizable. This valve is made of Class VI approved materials, it is ultrasonically welded and is 100% inline tested for backflow and weld leaks.
| SKU | Description |
|---|---|
| CIS-6383 | Check Valve .130 port Acrylic/Silicone .29CP |
