Description

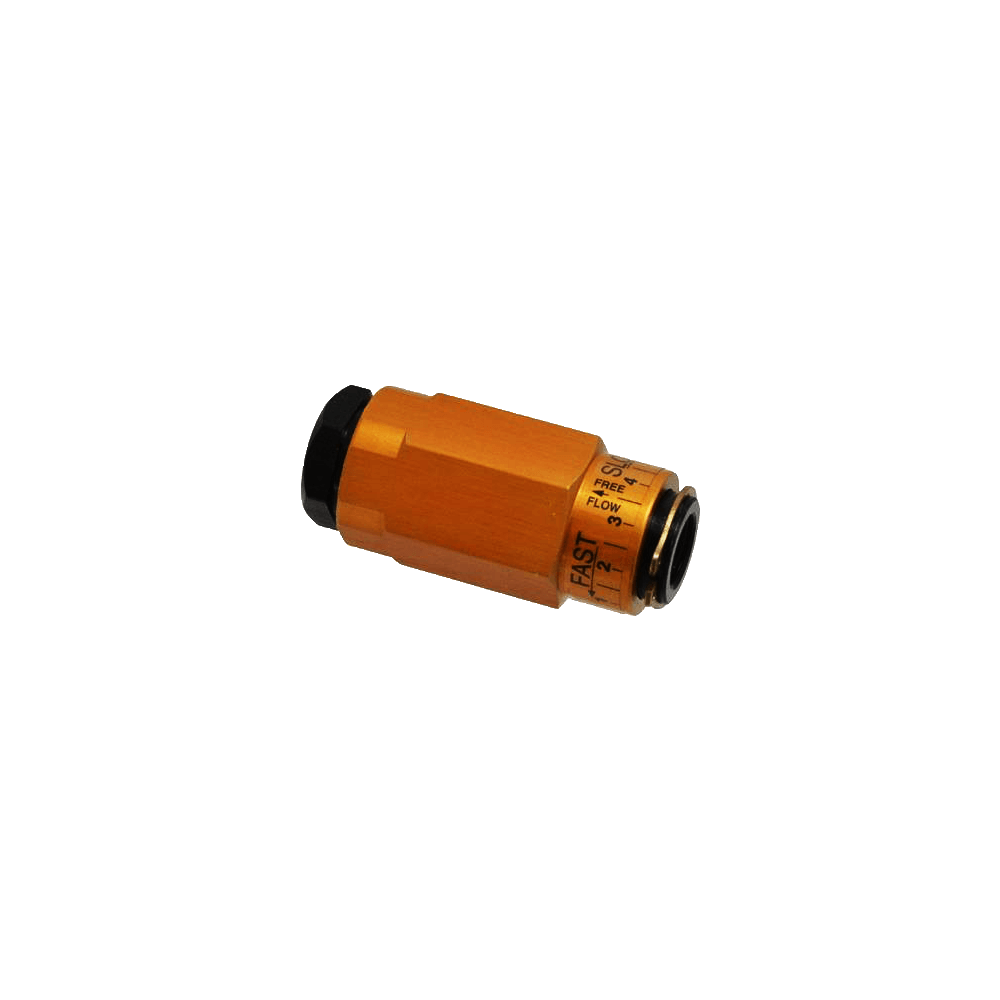

The DMF Series is a Flow Control Valve made of Aluminum, that can be used for air and oil. The maximum working pressure is 250 psi and the temperature range is -40˚F to 250˚F.  Also, sizes available are 1/4-28 Male/Female and 1/8”, 1/4″, 3/8”, 1/2” Female NPT. These valves control flow in one direction with free flow in the opposite direction.




SKUDESCRIPTION
DMF-2F1/8" FNPT Aluminum Flow Control Valve
DMF-4F1/4" FNPT Aluminum Flow Control Valve
DMF-6F3/8" FNPT Aluminum Flow Control Valve
DMF-8F1/2" FNPT Aluminum Flow Control Valve
