Description

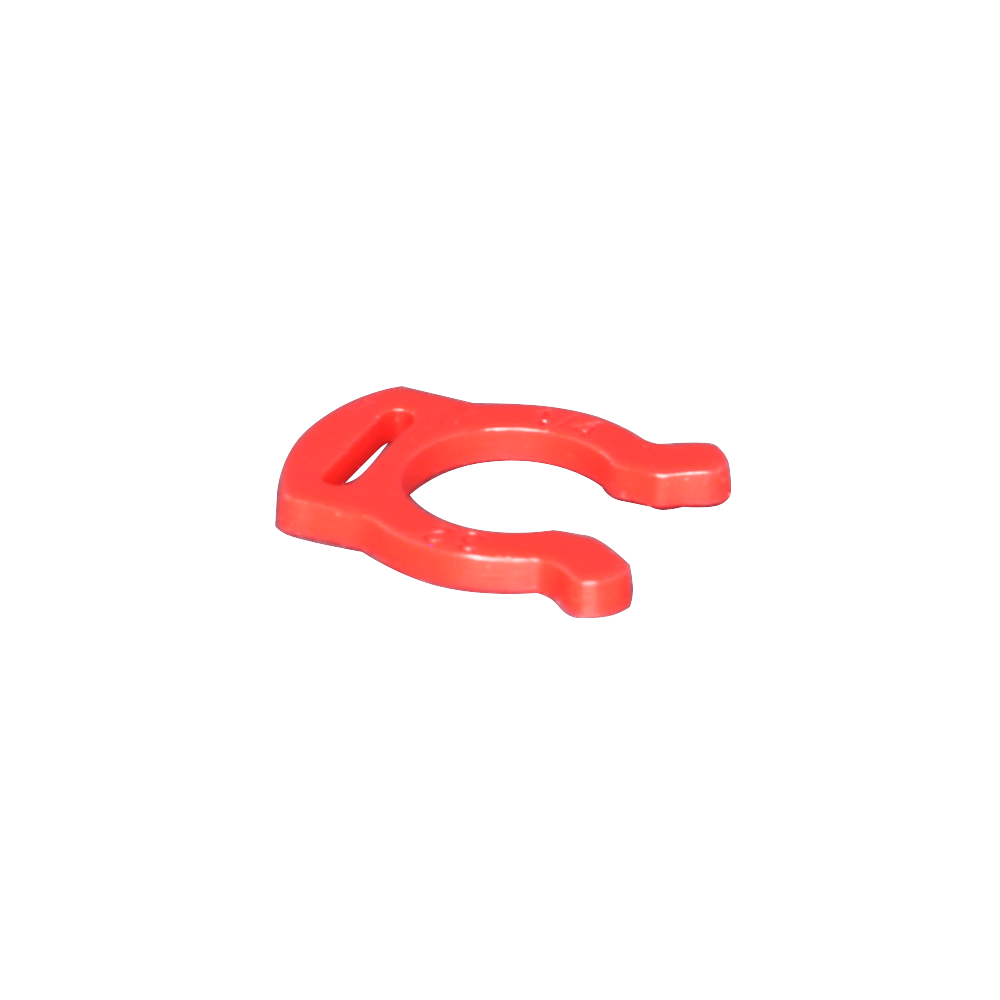

Acetal Clips are used with push-in fittings to secure the tubing from disconnecting. Used with Acetal and Polypropylene push-to-connect fittings in the food and beverage industry. for water and beverage dispensing. The outside dimensions of the tubing for these clips are 1/4”, 5/16”, 3/8”, and 1/2”. The temperature range is -4˚ F to 150˚ F. The pressure range is 145 psi to 230 psi. They are available in various colors; Red or Blue, also in metric sizes.
| SKU | DESCRIPTION |
|---|---|
| LTC-3B | 3/16" OD Acetal Locking Clip |
| LTC-4B | 1/4" OD Acetal Locking Clip |
| LTC-5B | 5/16" OD Acetal Locking Clip |
| LTC-6B | 3/8" OD Acetal Locking Clip |
| LTC-8B | 1/2" OD Acetal Locking Clip |
| LTC-5M | 5 mm OD Acetal Locking Clip |
| LTC-8M | 8 mm OD Acetal Locking Clip |
| LTC-10M | 10 mm OD Acetal Locking Clip |
| LTC-12M | 12 mm OD Acetal Locking Clip |
| LTC-15M | 15 mm OD Acetal Locking Clip |
