Bulkhead
FBH Brass Series
Description

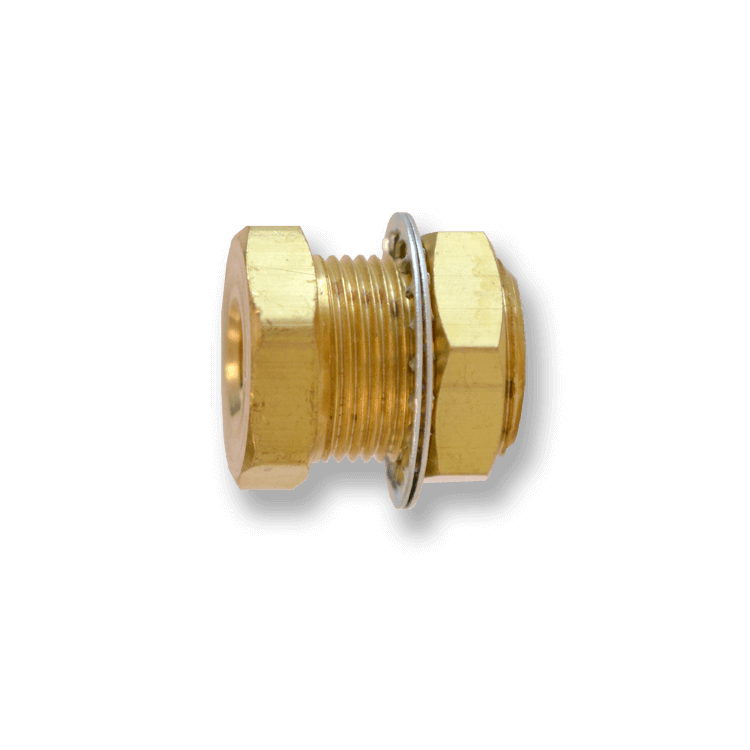

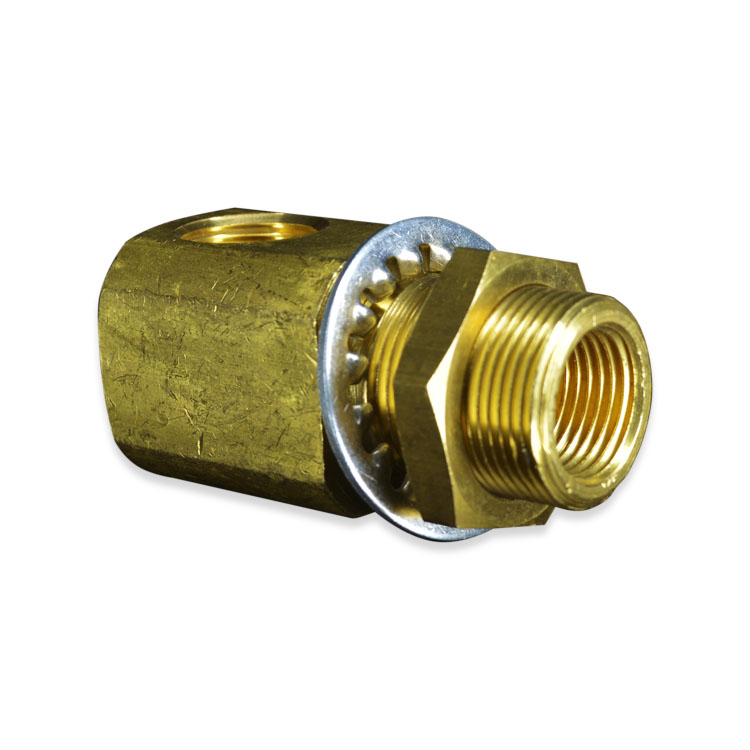

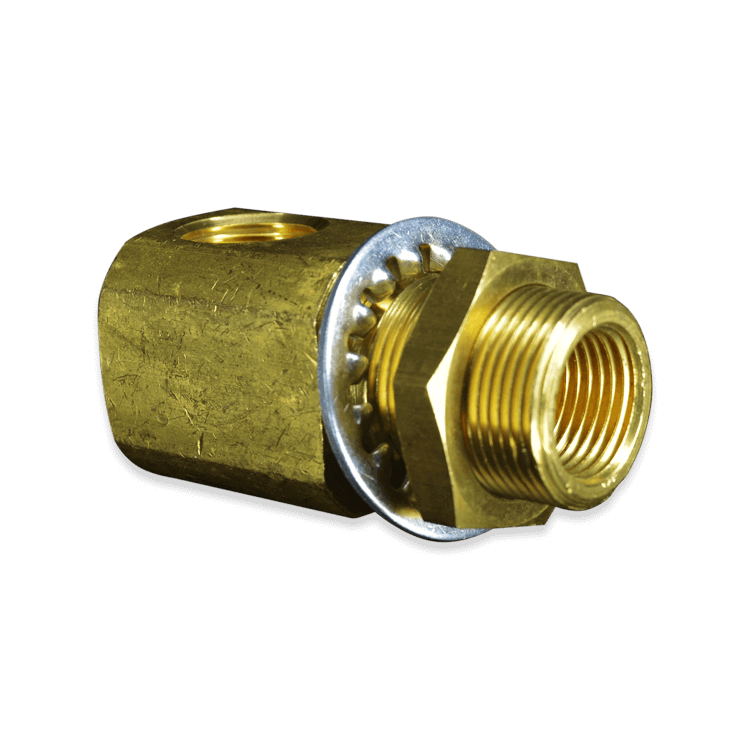

FBH Series inline Brass Bulkheads. FNPT both sides with exceptions, Elbow and several MNPT By FNPT. Brass Bulkhead sizes ranging from 1/8 inch FNPT thru 1 inch FNPT, Male to FNPT products are all 1/2 MNPT Dry seal located on the outside of the panel and FNPT on the inside of the panel, 1/4 or 3/8 FNPT. Zinc-Plated Steel optional,
For Stainless Steel (303 and 316), Nickel-Plated Brass, and Aluminum see MSSB Series. Additional 316 Stainless steel see our LSSB series.
| SKU | Description |
|---|---|
| FBH-12F | 1/2 inch Female 1-1/8, 14 UNS Bulkhead |
| FBH-12F12M | 1/2 inch Female by 1/2 inch Male Bulkhead |
| FBH-12M | 1/2 inch Male by 1/2 inch Male Bulkhead |
| FBH-12M14F | 1/2 inch Male 1/4 inch Female Bulkhead |
| FBH-12M38F | 1/2 inch Male 3/8 inch Female Bulkhead |
| FBH-14F | 1/4 inch Female 3/4-16 UNF Bulkhead |
| FBH-14X | 1/4 inch Female 3/4-16 UNF 1 1/2 inch length Bulkhead |
| FBH-18F | 1/8 Female 5/8-18 UNF Bulkhead |
| FBH-38F | 3/8 inch Female 1/14 UNF Bulkhead |
| FBH-38F12M | 3/8 inch Female by 1/2 inch Male Bulkhead |
| FBH-38F-E | 3/8 inch Female by 3/8 inch Female Elbow Bulkhead |
