Description

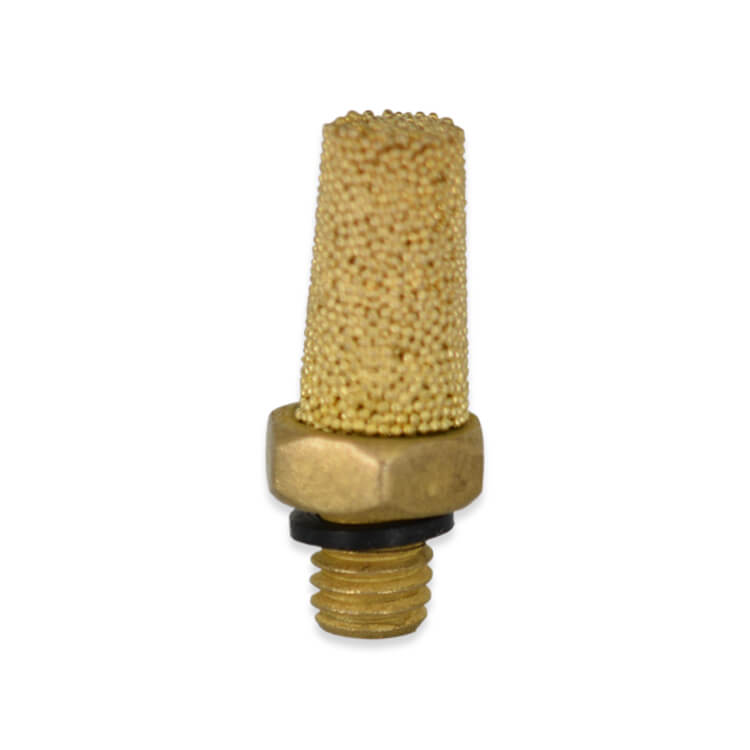

The ATTS Series is a Bronze muffler with a Brass body. This muffler is for cylinders, gear-boxes, or storage vessels. Available in 10-32 Male UNF threads and 1/16 inch, 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, and 1 inch MNPT threads. The filter element is sintered Bronze with a standard of 40 microns, but 10 and 90 micron elements are available. The maximum operating pressure for the sintered Bronze muffler is 300 psi and the working temperature is 35˚F to 300˚F.
This series is also available in a 303 Stainless Steel body and 316 Stainless Steel element with thread sizes from 1/8 inch to 1 inch MNPT. The maximum operating pressure for the Stainless Steel muffler is 300 psi and the working temperature is 35˚F to 392˚F.
| SKU | Description | |
|---|---|---|
| ATTS-2F | 1/8 inch FNPT 40 Micron Bronze Filter Brass Muffler | |
| ATTS-2M | 1/8 inch MNPT 40 Micron Bronze Filter Brass Muffler | |
| ATTS-2M-SS | 1/8 inch MNPT 70 Micron Stainless Steel Filter Muffler | |
| ATTS-4M | 1/4 inch MNPT 40 Micron Bronze Filter Brass Muffler | |
| ATTS-4M-SS | 1/4 inch MNPT 70 Micron Stainless Steel Filter Muffler | |
| ATTS-6M | 3/8 inch MNPT 40 Micron Bronze Filter Brass Muffler | |
| ATTS-6M-SS | 3/8 inch MNPT 70 Micron Stainless Steel Filter Muffler | |
| ATTS-8M | 1/2 inch MNPT 40 Micron Bronze Filter Brass Muffler | |
| ATTS-8M-SS | 1/2 inch MNPT 70 Micron Stainless Steel Filter Muffler | |
| ATTS-10 | 10-32 Male UNF 40 Micron Bronze Filter Brass Muffler | |
| ATTS-10-90 | 10-32 Male UNF 90 Micron Bronze Filter Brass Muffler | |
| ATTS-12M | 3/4 inch MNPT 40 Micron Bronze Filter Brass Muffler | |
| ATTS-12M-SS | 3/4 inch MNPT 70 Micron Stainless Steel Filter Muffler | |
| ATTS-16M | 1 inch MNPT 40 Micron Bronze Filter Brass Muffler | |
| ATTS-16M-SS | 1 inch MNPT 70 Micron Stainless Steel Filter Muffler | |
| ` |
