Description

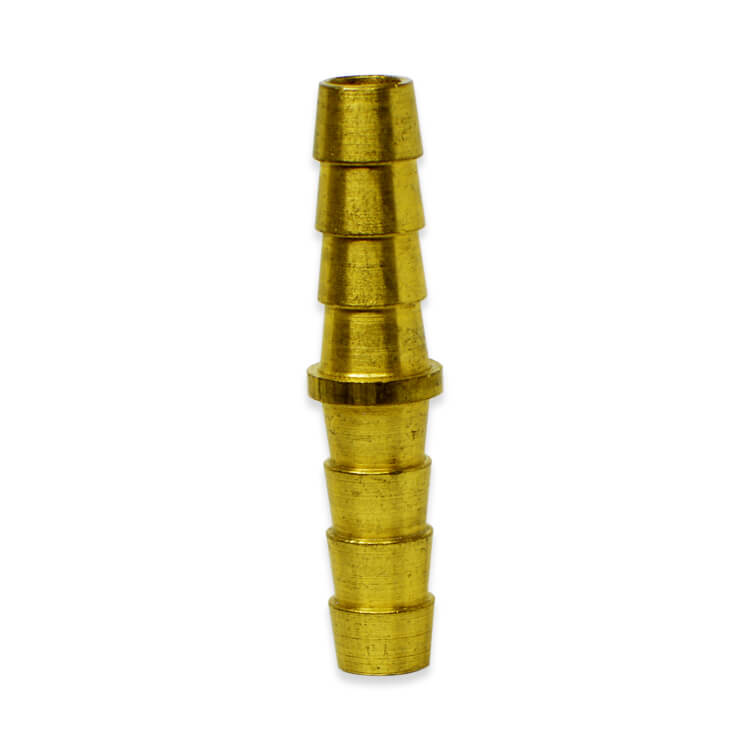

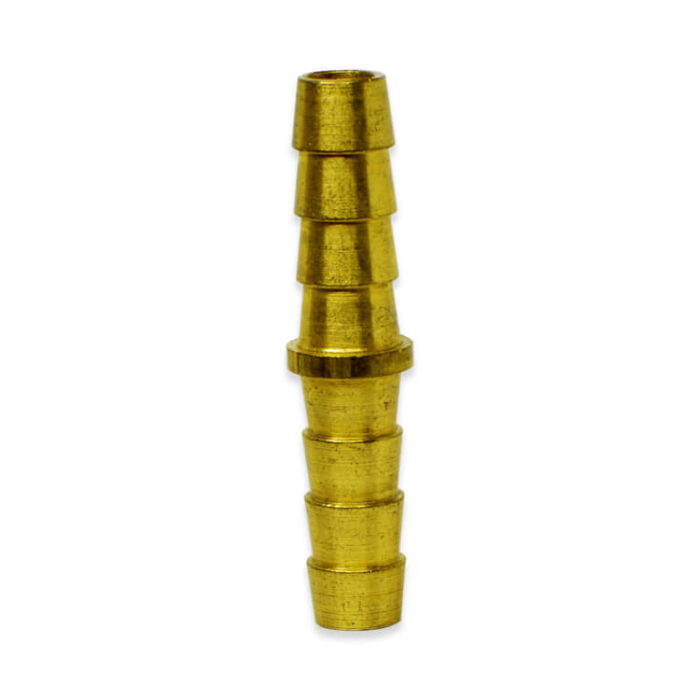

The BHM Series is a barstock Brass multi-barbed straight connector. Barb sizes range from 1/8 inch to 1 inch. The working temperature range is -40° F to 160° F. Maximum pressure rating is 150 psi. This fitting is designed to be used with a hose clamp.
| SKU | Description |
|---|---|
| BHM-2 | 1/8 inch by 1/8 inch Brass Multi-Barbed Straight Connector |
| BHM-3 | 3/16 inch by 3/16 inch Brass Multi-Barbed Straight Connector |
| BHM-4 | 1/4 inch by 1/4 inch Brass Multi-Barbed Straight Connector |
| BHM-5 | 5/16 inch by 5/16 inch Brass Multi-Barbed Straight Connector |
| BHM-6 | 3/8 inch by 3/8 inch Brass Multi-Barbed Straight Connector |
| BHM-8 | 1/2 inch by 1/2 inch Brass Multi-Barbed Straight Connector |
| BHM-10 | 5/8 inch by 5/8 inch Brass Multi-Barbed Straight Connector |
| BHM-12 | 3/4 inch by 3/4 inch Brass Multi-Barbed Straight Connector |
