Description

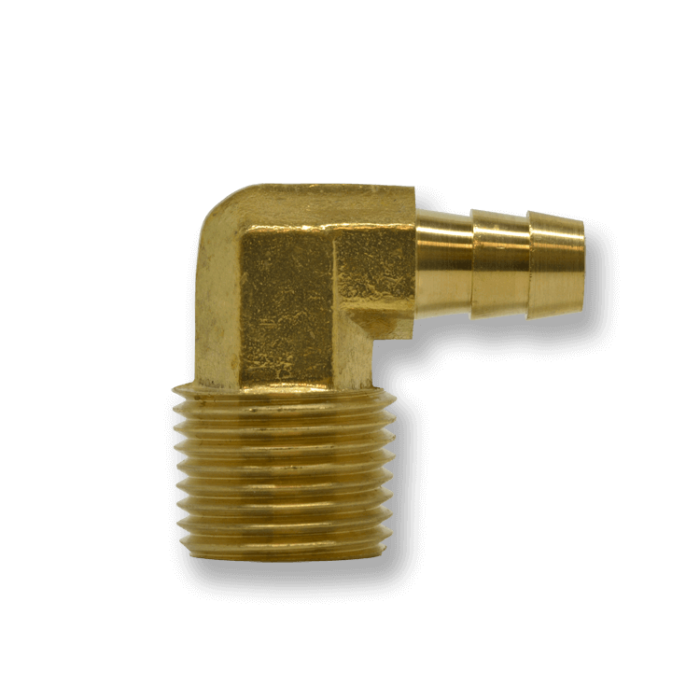

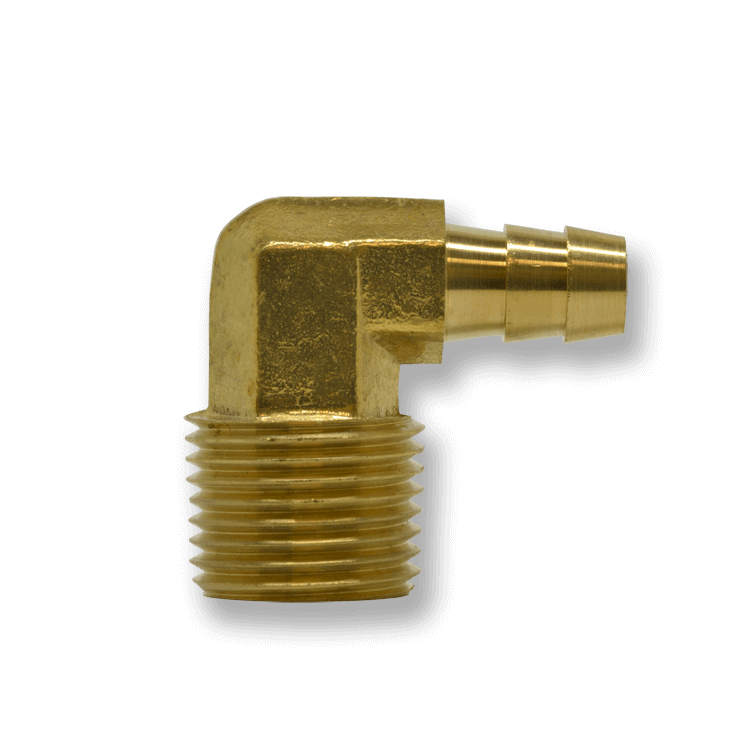

The BHME Series is a forged Brass multi-barbed 90° Elbow Adapter with male NPT threads. Available MNPT thread sizes range from 1/8 inch to 1 inch. In addition, available barb sizes range from 3/16 inches to 3/4 inches. Flow can be equal or reduced. The working temperature range is -40˚ to 160˚ and the working pressure is 150 psi. Barstock is optional for some sizes (see list below).
| SKU | Description |
|---|---|
| BHME-2M3B | 1/8 MNPT by 3/16 Hose Barb Elbow Forged |
| BHME-2M4B | 1/8 MNPT By 1/4 Hose Barb Elbow Forged B |
| BHME-2M5B | 1/8 MNPT By 5/16 Hose Barb Elbow Forged |
| BHME-2M6B | 1/8 MNPT By 3/8 Barb Elbow Forged |
| BHME-38M18B-R2 | 3/8 MNPT By 1/8 Hose Barb Elbow Forged 2 Piece Unit |
| BHME-4M3B | 1/4 MNPT by 3/16 Hose Barb Elbow Forged |
| BHME-4M4B | 1/4 MNPT By 1/4 Hose Barb Elbow Forged B |
| BHME-4M5B | 1/4 MNPT by 5/16 Hose Barb Elbow Forged |
| BHME-4M6B | 1/4 MNPT by 3/8 Hose Barb Elbow Forged B |
| BHME-4M8B | 1/4 MNPT By 1/2 Hose Barb Elbow Forged |
| BHME-6M4B-B | 3/8 MNPT By 1/4 Hose Barb Elbow Barstock |
| BHME-6M5B | 3/8 MNPT By 5/16 Hose Barb Elbow Forged |
| BHME-6M6B | 3/8 MNPT By 3/8 Hose Barb Elbow Forged B |
| BHME-6M8B | 3/8 MNPT By 1/2 Hose Barb Elbow Forged B |
| BHME-8M6B | 1/2 MNPT By 3/8 Hose Barb Elbow Forged |
| BHME-8M8B | 1/2 MNPT By 1/2 Hose Barb Elbow Forged |
| BHME-12M12B | 3/4 MNPT by 3/4 Barb Elbow |
| BHME-16M12B | 1 Inch MNPT by 3/4 Barb Elbow |
