Description

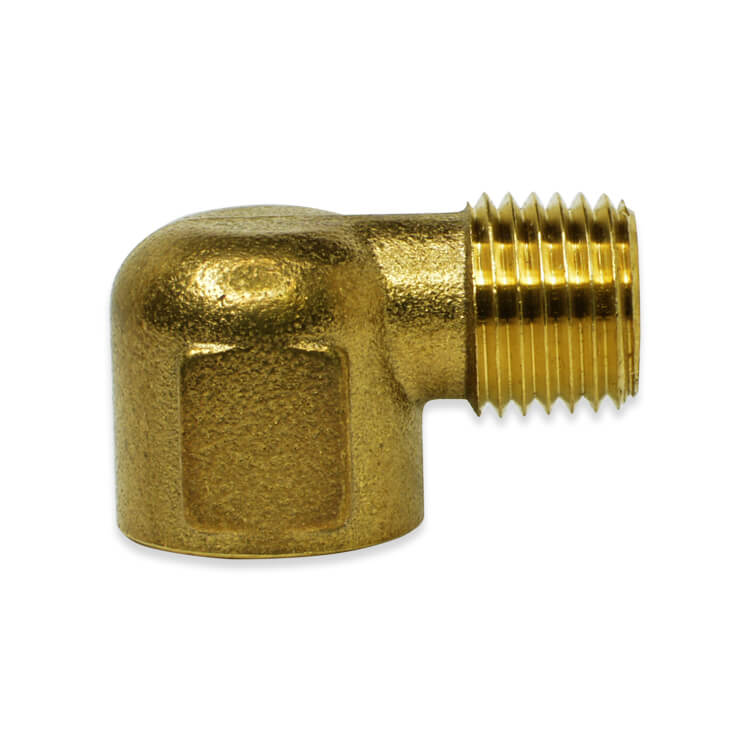

The BSTE Series are 90° Brass Street Elbows, available as both forged and bar stock. The bar stock fitting is available in a short version. The forged is available as a reducer. Available MNPT and FNPT thread sizes are 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, and 3/4 inch. The temperature range is -65° F to 250° F. The operating pressure is 1200 psi. They can be used for grease, fuels, refrigeration, and hydraulic applications. They meet ASA, ASME, and SAE specifications.
| SKU | Description |
|---|---|
| BSTE-2-S-NP | 1/8 inch NPT Nickel Plated Short Street Elbow |
| BSTE-2 | 1/8 inch MNPT by 1/8 inch FNPT Brass Street Elbow |
| BSTE-4 | 1/4 inch MNPT by 1/4 inch FNPT Brass Street Elbow |
| BSTE-6 | 3/8 inch MNPT by 3/8 inch FNPT Brass Street Elbow |
| BSTE-8 | 1/2 inch MNPT by 1/2 inch FNPT Brass Street Elbow |
| BSTE-12 | 3/4 inch MNPT by 3/4 inch FNPT Brass Street Elbow |
| BSTE-2M4F | 1/8 inch MNPT by 1/4 inch FNPT Brass Street Elbow |
| BSTE-4M6F | 1/4 inch MNPT by 3/8 inch FNPT Brass Street Elbow |
| BSTE-4M2F | 1/4 inch MNPT by 1/8 inch FNPT Brass Street Elbow Reducer |
