Description

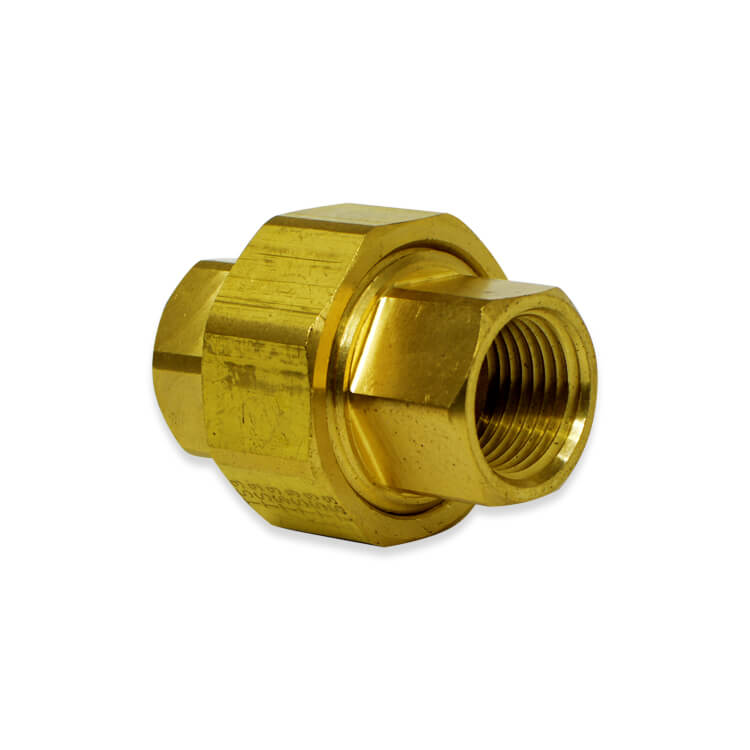

The FXF Series is a Brass female-by-female union. The brass fittings are available in four sizes, the nickel plated in five sizes, as noted below. The maximum operating pressure is 1200 psi and the working temperature range is -65° F to 250° F.
| SKU | Description |
|---|---|
| FXF-2 | 1/8 inch FNPT by 1/8 inch FNPT Brass Union |
| FXF-4 | 1/4 inch FNPT by 1/4 inch FNPT Brass Union |
| FXF-6 | 3/8 inch FNPT by 3/8 inch FNPT Brass Union |
| FXF-8 | 1/2 inch FNPT by 1/2 inch FNPT Brass Union |
| FXF-12 | 3/4 inch FNPT by 3/4 inch FNPT Nickel Plated Union |
