Description

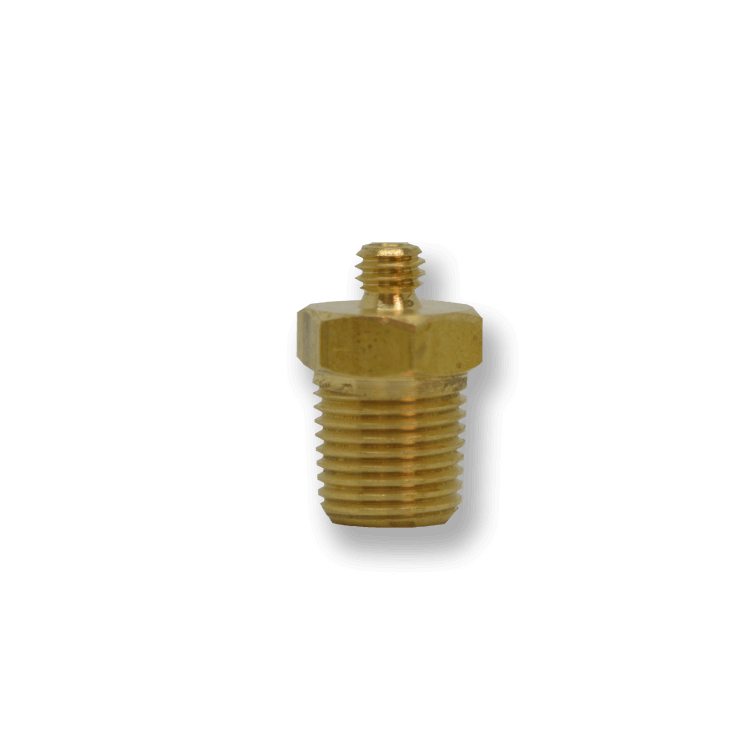

The MRB Series is a Brass reducer bushing in Metric, UNF, and NPT thread sizes. Also available in Nickel-Plate. The working pressure for this fitting is 1200 psi and the temperature range is -65° F to 250°F.




SKUDescription
MRB-14M356F1/4-28 Male by 3-56 Female Brass Reducer Bushing
MRB-14M632F1/4-28 Male by 6-32 Female Brass Reducer Bushing
MRB-14M832F1/4-28 Male by 8-32 Female Brass Reducer Bushing
MRB-14M10F1/4-28 Male by 10-32 Female Brass Reducer Bushing
MRB-1428M10F1/4-28 Male by 10-32 Female Brass Reducer Bushing
MRB-1M356F1/16 inch Male by 3-56 Female Brass Reducer Bushing
MRB-1M632F1/16 inch Male by 6-32 Female Brass Reducer Bushing
MRB-1M832F1/16 inch Male by 8-32 Female Brass Reducer Bushing
MRB-1M10F1/16 inch Male by 10-32 Female Brass Reducer Bushing
MRB-1M14F1/16 inch Male by 1/4-28 Female Brass Reducer Bushing
MRB-2M356F1/8 inch Male by 3-56 Female Brass Reducer Bushing
MRB-2M632F1/8 inch Male by 6-32 Female Brass Reducer Bushing
MRB-2M832F1/8 inch Male by 8-32 Female Brass Reducer Bushing
MRB-2M10F1/8 inch Male by 10-32 Female Brass Reducer Bushing
MRB-2M14F1/8 inch Male by 1/4-28 Female Brass Reducer Bushing
MRB-2M1F1/8 inch Male by 1/16 inch Female Brass Reducer Bushing
MRB-4M356F1/4 inch Male by 3-56 Female Brass Reducer Bushing
MRB-4M632F1/4 inch Male by 6-32 Female Brass Reducer Bushing
MRB-4M832F1/4 inch Male by 8-32 Female Brass Reducer Bushing
MRB-4M10F1/4 inch Male by 10-32 Female Brass Reducer Bushing
MRB-4M14F1/4 inch Male by 1/4-28 Female Brass Reducer Bushing
MRB-4M51628F1/4 inch Male by 5/16-28 Female Brass Reducer Bushing
MRB-4M3824F1/4 inch Male by 3/8-24 Female Brass Reducer Bushing
MRB-4M1F1/4 inch Male by 1/16 inch Female Brass Reducer Bushing
MRB-4M2F1/4 inch Male by 1/8 inch Female Brass Reducer Bushing
MRB-6M10F3/8 inch Male by 10-32 Female Brass Reducer Bushing
MRB-M5MM3FM5 Male by M3 Female Brass Reducer Bushing
MRB-M6MM3FM6 Male by M3 Female Brass Reducer Bushing
MRB-M8M10FM8 Male by 10-32 Female Brass Reducer Bushing
MRB-M8MM3FM8 Male by M3 Female Brass Reducer Bushing
MRB-M8MM5FM8 Male by M5 Female Brass Reducer Bushing
MRB-2M1032F 1/8 inch Male by 10-32 Female Brass Reducer Bushing
MRB-2M1F 1/8 inch Male by 1/16 inch Female Brass Reducer Bushing
MRB-4M1032F 1/4 inch Male by 10-32 Female Brass Reducer Bushing
MRB-4M1F 1/4 inch Male by 1/16 inch Female Brass Reducer Bushing
MRB-4M2F 1/4 inch Male by 1/8 inch Female Brass Reducer Bushing
MRB-6M1032F 3/8 inch Male by 10-32 Female Brass Reducer Bushing
MRB-6M1F 3/8 inch Male by 1/16 inch Female Brass Reducer Bushing
MRB-6M2F 3/8 inch Male by 1/8 inch Female Brass Reducer Bushing
MRB-6M4F 3/8 inch Male by 1/4 inch Female Brass Reducer Bushing
MRB-8M1032F 1/2 inch Male by 10-32 Female Brass Reducer Bushing
MRB-8M1F 1/2 inch Male by 1/16 inch Female Brass Reducer Bushing
MRB-8M2F 1/2 inch Male by 1/8 inch Female Brass Reducer Bushing
MRB-8M4F 1/2 inch Male by 1/4 inch Female Brass Reducer Bushing
MRB-8M6F 1/2 inch Male by 3/8 inch Female Brass Reducer Bushing
