Description

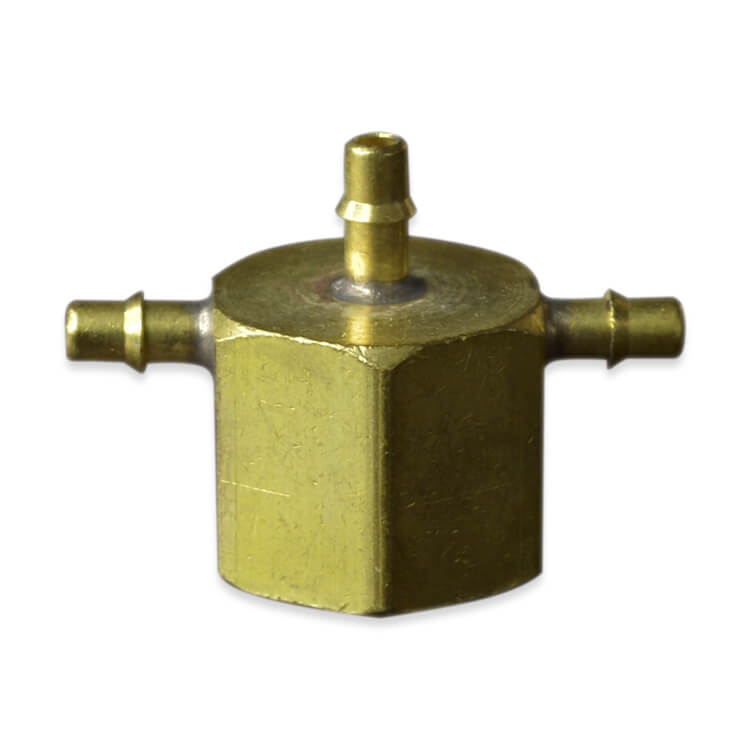

The FAT Series are Brass female adapters with bite-style barbs. Any different Barb size can be placed on any hex. FNPT thread sizes available for this series are 1/8 inch and 1/4 inch. Barb sizes range from 5/64 inch to 3/8 inch.




SKUDescription
FAT-2F1B1/8 inch FNPT by 1/16 inch Brass Barbed Tee Adapter
FAT-2F564B1/8 inch FNPT by 5/64 inch Brass Barbed Tee Adapter
FAT-2F2B1/8 inch FNPT by 1/8 inch Brass Barbed Tee Adapter
FAT-2F170B1/8 inch FNPT by .170 inch Brass Barbed Tee Adapter
FAT-2F6B1/8 inch FNPT by 3/8 inch Brass Barbed Tee Adapter
FAT-4F1B1/4 inch FNPT by 1/16 inch Brass Barbed Tee Adapter
FAT-4F564B1/4 inch FNPT by 5/64 inch Brass Barbed Tee Adapter
FAT-4F2B1/4 inch FNPT by 1/8 inch Brass Barbed Tee Adapter
FAT-4F170B1/4 inch FNPT by .170 inch Brass Barbed Tee Adapter
FAT-4F6B1/4 inch FNPT by 3/8 inch Brass Barbed Tee Adapter
