Description

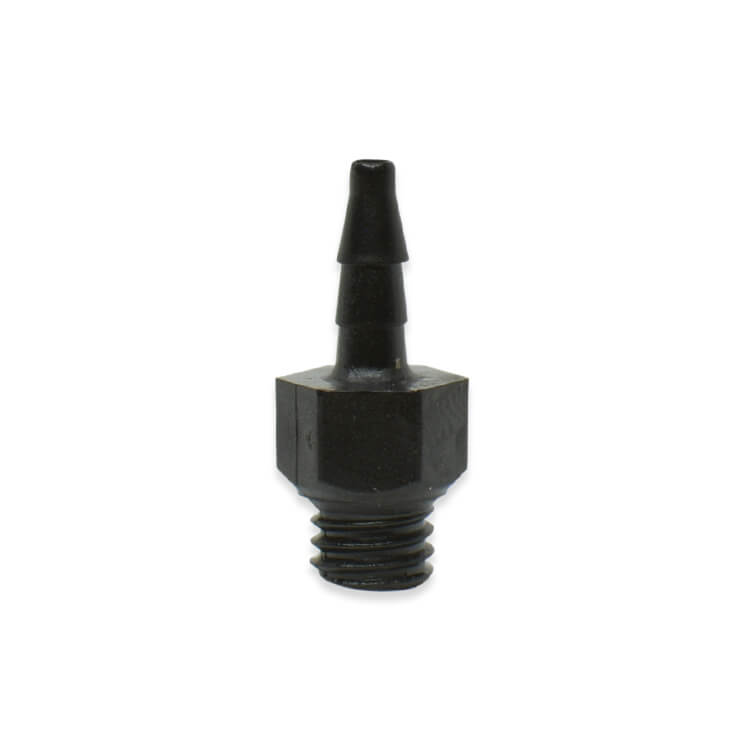

The AO-IG Series is a thread-to-barb fitting made of FDA-approved Polysufone with an integral precision orifice. The threads are 10-32 inch male UNF threads and the barbs are either 1/8 inch or 1/16 inch. The maximum operating pressure is 100 psi.
| SKU | Description |
|---|---|
| AO-IG-10X1B-004 | 10-32 inch Male UNF by 1/16 inch, .004 Polysulfone Adapter Orifice |
| AO-IG-10X1B-005 | 10-32 inch Male UNF by 1/16 inch, .005 Polysulfone Adapter Orifice |
| AO-IG-10X1B-006 | 10-32 inch Male UNF by 1/16 inch, .006 Polysulfone Adapter Orifice |
| AO-IG-10X1B-007 | 10-32 inch Male UNF by 1/16 inch, .007 Polysulfone Adapter Orifice |
| AO-IG-10X1B-010 | 10-32 inch Male UNF by 1/16 inch, .010 Polysulfone Adapter Orifice |
| AO-IG-10X1B-012 | 10-32 inch Male UNF by 1/16 inch, .012 Polysulfone Adapter Orifice |
| AO-IG-10X1B-016 | 10-32 inch Male UNF by 1/16 inch, .016 Polysulfone Adapter Orifice |
| AO-IG-10X1B-020 | 10-32 inch Male UNF by 1/16 inch, .020 Polysulfone Adapter Orifice |
| AO-IG-10X1B-025 | 10-32 inch Male UNF by 1/16 inch, .025 Polysulfone Adapter Orifice |
| AO-IG-10X1B-030 | 10-32 inch Male UNF by 1/16 inch, .030 Polysulfone Adapter Orifice |
| AO-IG-10X1B-040 | 10-32 inch Male UNF by 1/16 inch, .040 Polysulfone Adapter Orifice |
| AO-IG-10X2B-004 | 10-32 inch Male UNF by 1/8 inch, .004 Polysulfone Adapter Orifice |
| AO-IG-10X2B-005 | 10-32 inch Male UNF by 1/8 inch, .005 Polysulfone Adapter Orifice |
| AO-IG-10X2B-006 | 10-32 inch Male UNF by 1/8 inch, .006 Polysulfone Adapter Orifice |
| AO-IG-10X2B-007 | 10-32 inch Male UNF by 1/8 inch, .007 Polysulfone Adapter Orifice |
| AO-IG-10X2B-010 | 10-32 inch Male UNF by 1/8 inch, .010 Polysulfone Adapter Orifice |
| AO-IG-10X2B-012 | 10-32 inch Male UNF by 1/8 inch, .012 Polysulfone Adapter Orifice |
| AO-IG-10X2B-016 | 10-32 inch Male UNF by 1/8 inch, .016 Polysulfone Adapter Orifice |
| AO-IG-10X2B-020 | 10-32 inch Male UNF by 1/8 inch, .020 Polysulfone Adapter Orifice |
| AO-IG-10X2B-025 | 10-32 inch Male UNF by 1/8 inch, .025 Polysulfone Adapter Orifice |
| AO-IG-10X2B-030 | 10-32 inch Male UNF by 1/8 inch, .030 Polysulfone Adapter Orifice |
| AO-IG-10X2B-040 | 10-32 inch Male UNF by 1/8 inch, .040 Polysulfone Adapter Orifice |
