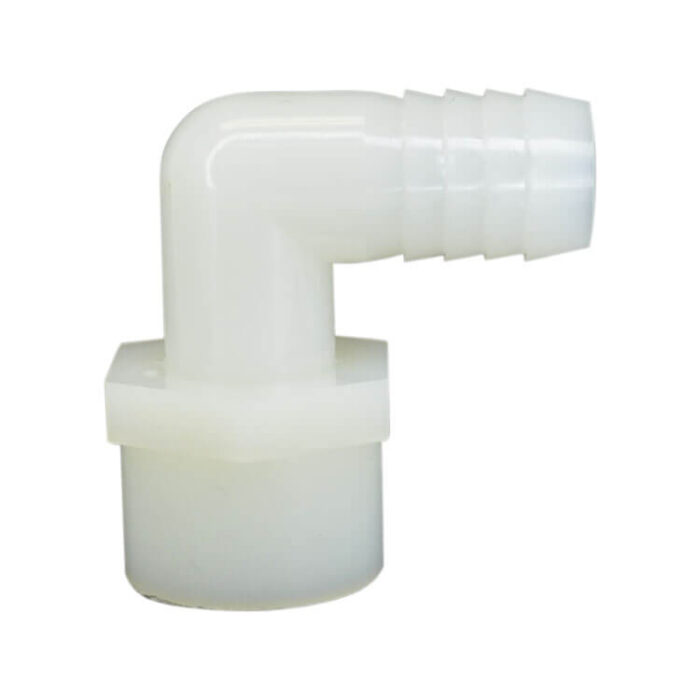

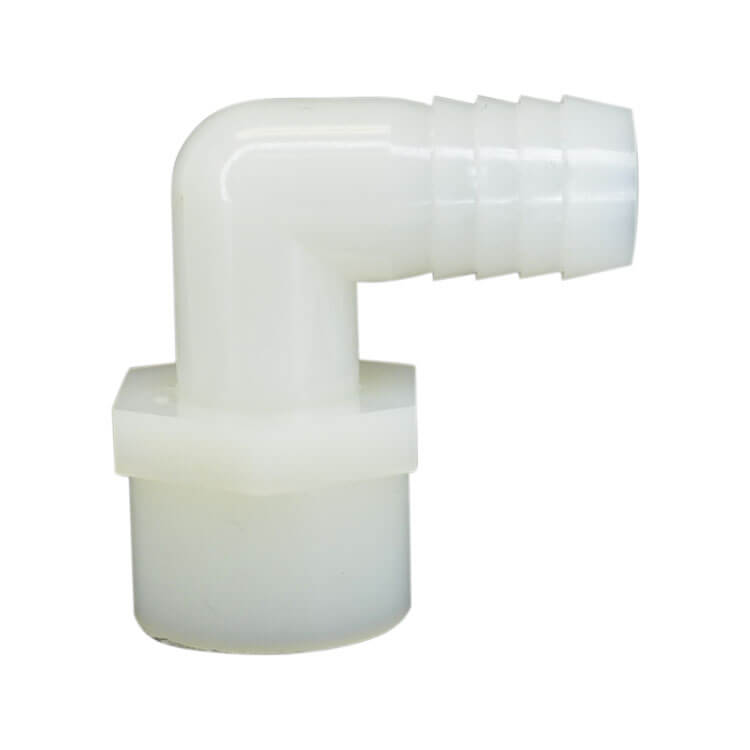

Female Multi-Barbed Elbow Adapter
AFL Series
Description
The AFL Series is an FNPT by a triple barb elbow, and is molded of NSF-listed Natural Nylon or FDA listed Black Polypropylene. FNPT sizes are 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, and 3/4 inch. Barb sizes are 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, and 3/4 inch. The working pressure for both materials is 150 psi. These adapters should not be used for compressed gasses.
| SKU | DESCRIPTION |
|---|---|
| AFL-2F4B | 1/8 FNPT by 1/4 Barb Elbow Adapter |
| AFL-2F6B | 1/8 FNPT by 3/8 Barb Elbow Adapter |
| AFL-4F4B | 1/4 FNPT by 1/4 Barb Elbow Adapter |
| AFL-4F6B | 1/4 FNPT by 3/8 Barb Elbow Adapter |
| AFL-4F8B | 1/4 FNPT by 1/2 Barb Elbow Adapter |
| AFL-6F10B | 3/8 FNPT by 5/8 Barb Elbow Adapter |
| AFL-6F4B | 3/8 FNPT by 1/4 Barb Elbow Adapter |
| AFL-6F6B | 3/8 FNPT by 3/8 Barb Elbow Adapter |
| AFL-6F8B | 3/8 FNPT by 1/2 Barb Elbow Adapter |
| AFL-8F10B | 1/2 FNPT by 5/8 Barb Elbow Adapter |
| AFL-8F4B | 1/2 FNPT by 1/4 Barb Elbow Adapter |
| AFL-8F6B | 1/2 FNPT by 3/8 Barb Elbow Adapter |
| AFL-8F8B | 1/2 FNPT by 1/2 Barb Elbow Adapter |
