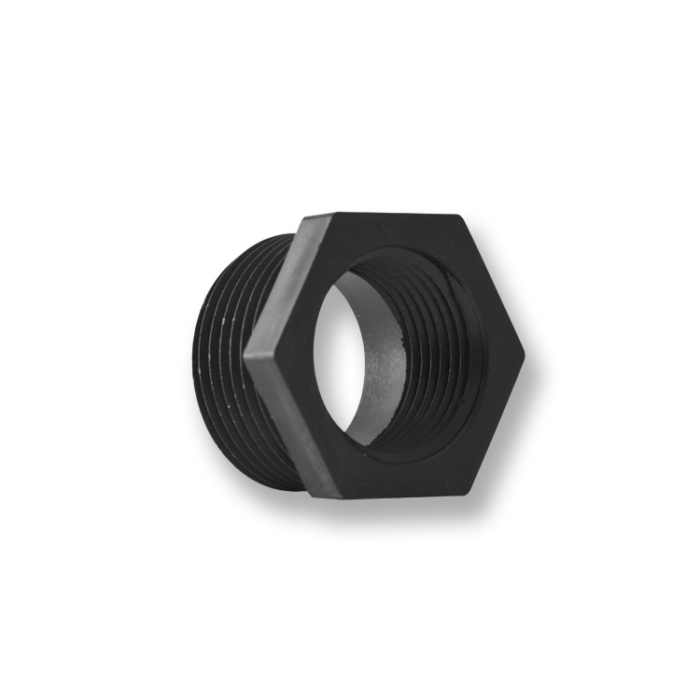

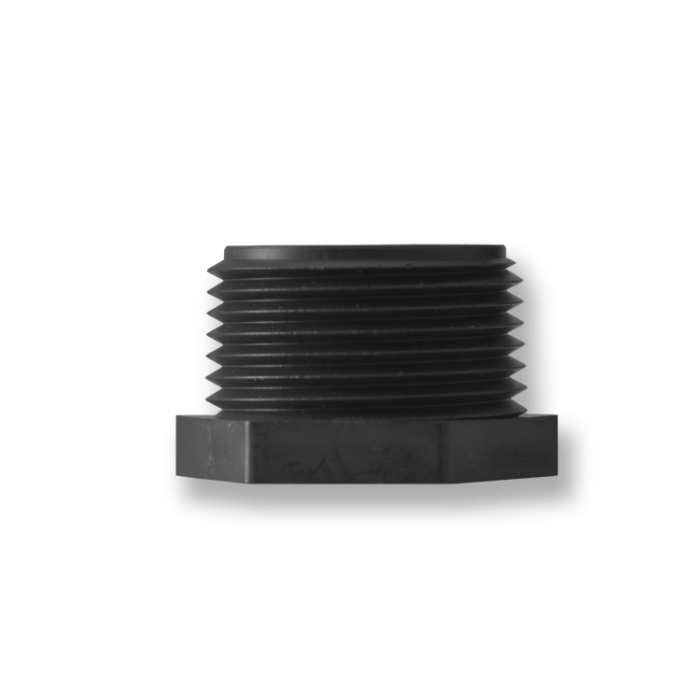

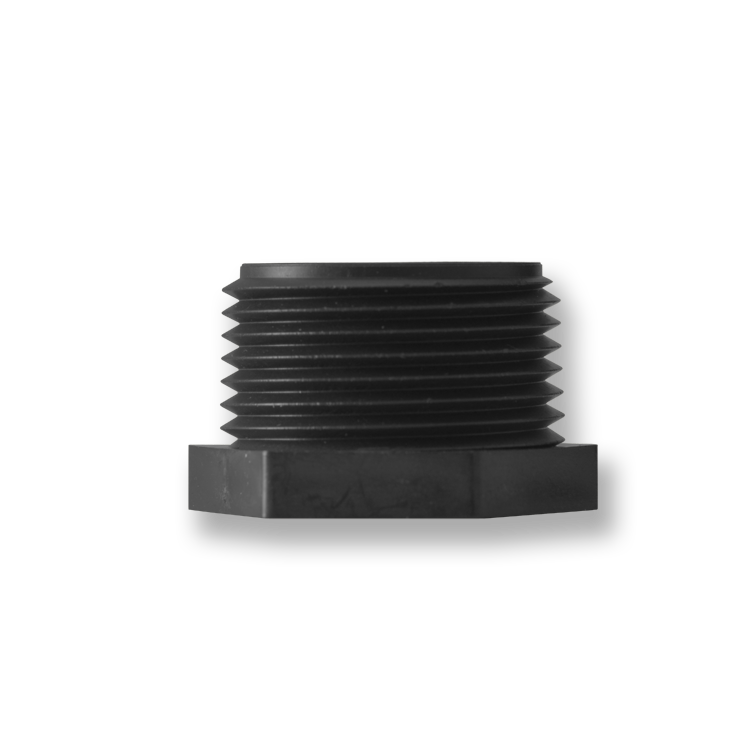

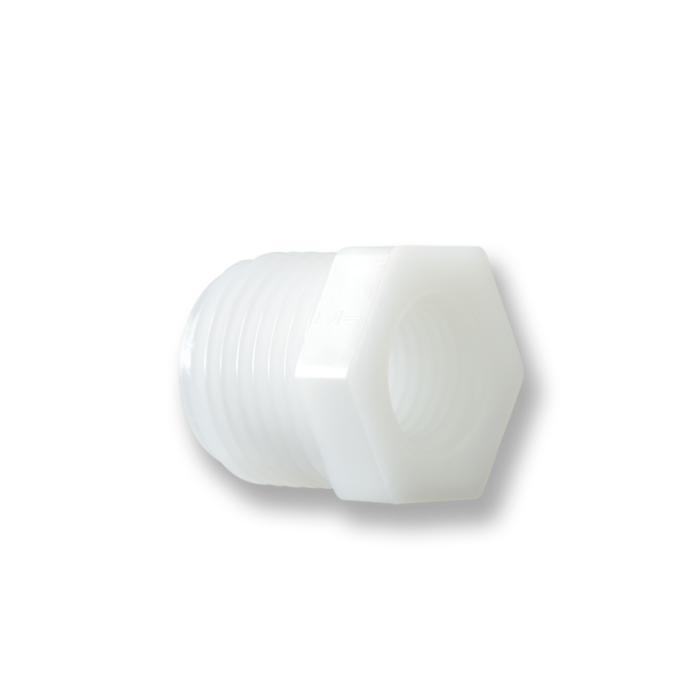

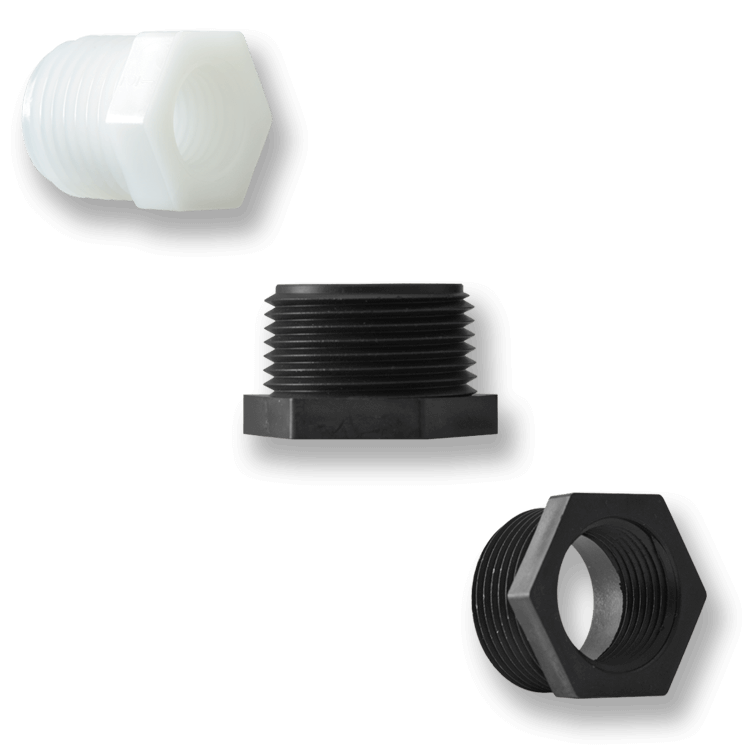

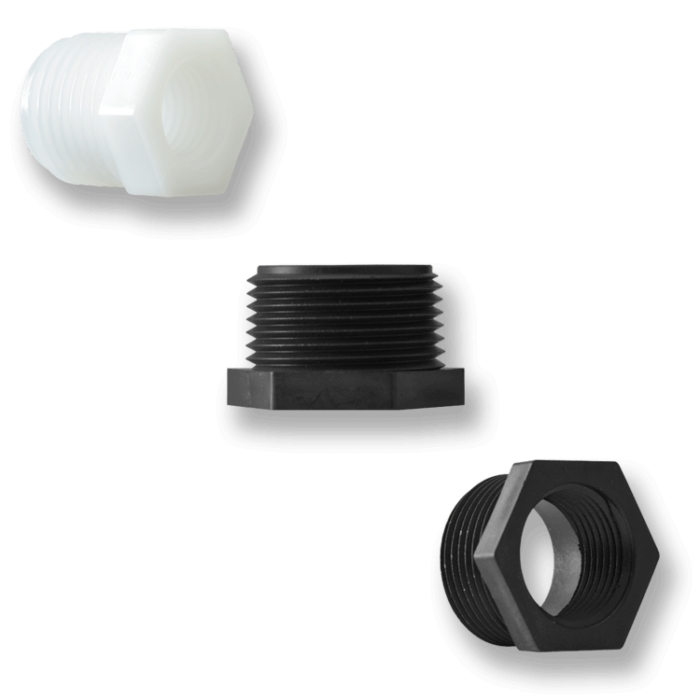

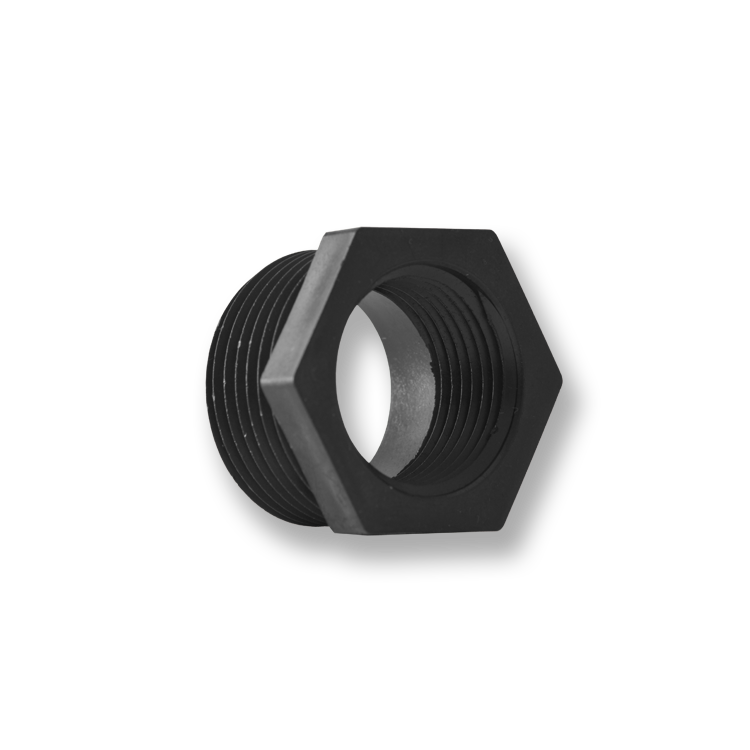

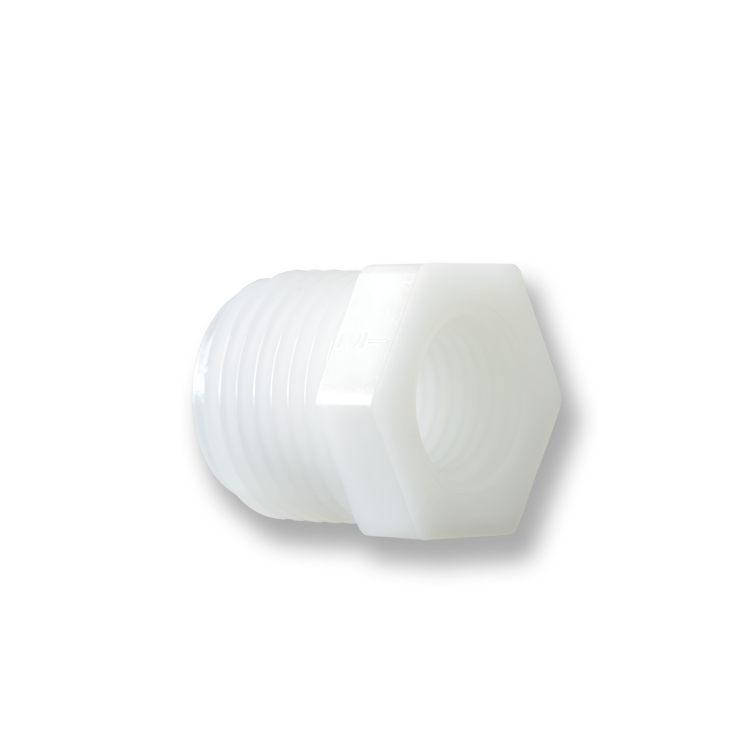

Standard Pipe Reducer Bushing (Plastic)
RB Series
Description
The RB Series are standard pipe Reducer Bushings. They are made of Natural Nylon, Natural and Black Polypropylene, PVDF, PTFE, and PVC. Available in combinations of sizes from 1/8 inch to 3 inches in UNF and NPT male and female threads.
| SKU | Description |
|---|---|
| RB-102M | 1/8 MNPT by 10-32 Female Bushing |
| RB-142M | 1/8 MNPT by 1/4-28 Female Bushing |
| RB-144M | 1/4 MNPT by 1/4-28 Female Bushing |
| RB-4M2F | 1/4 MNPT 1/8 FNPT Bushing |
| RB-6M2F | 3/8 MNPT by 1/8 FNPT Bushing |
| RB-6M4F | 3/8 MNPT by 1/4 FNPT Bushing |
| RB-8M2F | 1/2 MNPT by 1/8 FNPT Bushing |
| RB-8M4F | 1/2 MNPT by 1/4 FNPT Bushing |
| RB-8M6F | 1/2 MNPT by 3/8 FNPT Bushing |
| RB-12M2F | 3/4 MNPT by 1/8 FNPT Bushing |
| RB-12M4F | 3/4 MNPT by 1/4 FNPT Bushing |
| RB-12M6F | 3/4 MNPT by 3/8 FNPT Bushing |
| RB-12M8F | 3/4 MNPT by 1/2 FNPT Bushing |
| RB-16M12F | 1 inch MNPT by 3/4 FNPT Bushing |
| RB-16M8F | 1 inch MNPT by 1/2 FNPT Bushing |
| RB-114-12 | 1-1/4 MNPT by 3/4 FNPT Bushing |
| RB-114-16 | 1-1/4 MNPT by 1 inch FNPT Bushing |
| RB-112-114 | 1-1/2 MNPT by 1-1/4 FNPT Bushing |
| RB-112-12 | 1-1/2 MNPT by 3/4 FNPT Bushing |
| RB-112-16 | 1-1/2 MNPT by 1 inch FNPT Bushing |
| RB-2-112 | 2 inch MNPT by 1-1/2 FNPT Bushing |
| RB-2-114 | 2 inch MNPT by 1-1/4 FNPT Bushing |
| RB-2-16 | 2 inch MNPT by 1 inch FNPT Bushing |
| RB-3-2 | 3 inch MNPT by 2 inch FNPT Bushing |
