Description

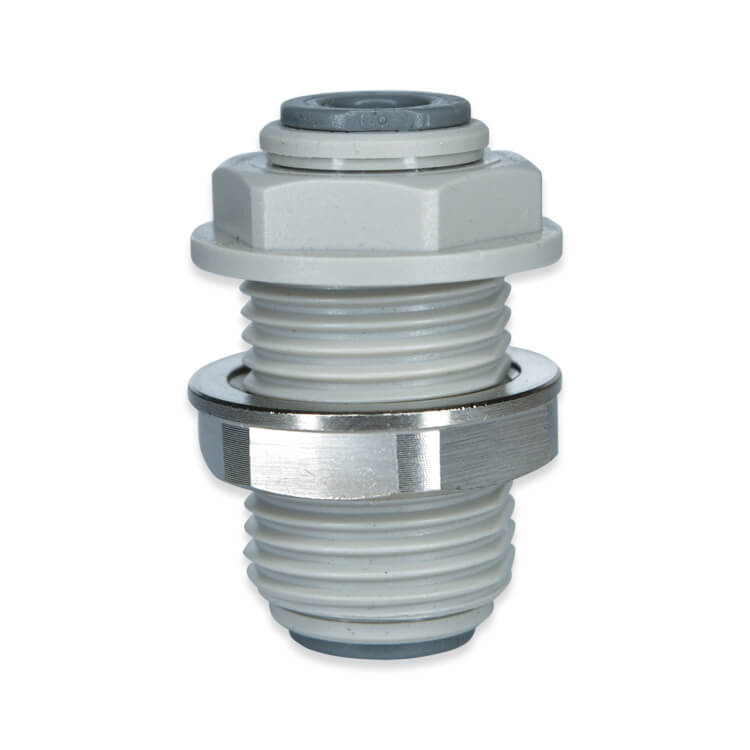

Push-to-Connect Panel Mount connectors available in Acetal, Polypropylene, and Kynar® used to join tubing of Polyethylene, Brass, or Copper. Sizes range from 5/32 inch OD to 1/2 inch OD including reducing sizes. Gray or White Acetal are NSF and FDA-approved and have Buna seals for use in air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.
| SKU | Description |
|---|---|
| PB-3 | 3/16 OD Push-to-Connect Bulkhead |
| PB-4 | 1/4 OD Push-to-Connect Bulkhead |
| PB-532 | 5/32 OD Push-to-Connect Bulkhead |
| PB-5 | 5/16 OD Push-to-Connect Bulkhead |
| PB-6-4 | 3/8 OD by 1/4 OD Push-to-Connect Bulkhead |
| PB-6 | 3/8 OD Push-to-Connect Bulkhead |
| PB-8-4 | 1/2 OD by 1/4 OD Push-to-Connect Bulkhead |
