Description

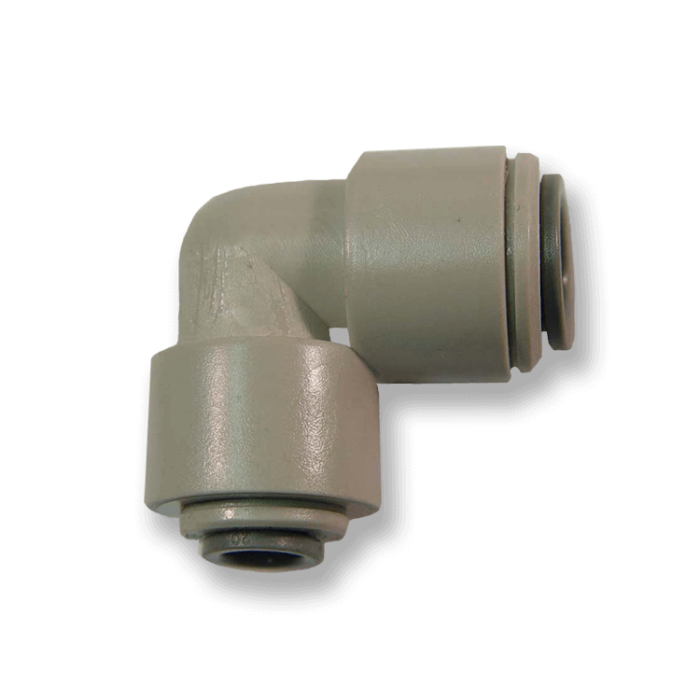

Push-to-Connect Elbow connectors available in Acetal, Polypropylene, and Kynar°® used to join tubing of Polyethylene, Brass, or Copper. Sizes range from 5/32 inch OD to 1/2 inch OD including reducing sizes. Gray or White Acetal are NSF and FDA-approved and have Buna seals for use in air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.
| SKU | Description |
|---|---|
| PE-3 | 3/16 OD Push-to-Connect Elbow |
| PE-4 | 1/4 OD Push-to-Connect Elbow |
| PE-532 | 5/32 OD Push-to-Connect Elbow |
| PE-5-3 | 5/16 OD by 3/16 OD Push-to-Connect Elbow |
| PE-5-4 | 5/16 OD by 1/4 OD Push-to-Connect Elbow |
| PE-5-532 | 5/16 OD by 5/32 OD Push-to-Connect Elbow |
| PE-5 | 5/16 OD Push-to-Connect Elbow |
| PE-6-3 | 3/8 OD by 3/16 OD Push-to-Connect Elbow |
| PE-6-4 | 3/8 OD by 1/4 OD Push-to-Connect Elbow |
| PE-6-5 | 3/8 OD by 5/16 OD Push-to-Connect Elbow |
| PE-6 | 3/8 OD OD Push-to-Connect Elbow PP PVDF |
| PE-8-6 | 1/2 OD by 3/8 OD Push-to-Connect Elbow |
