Description

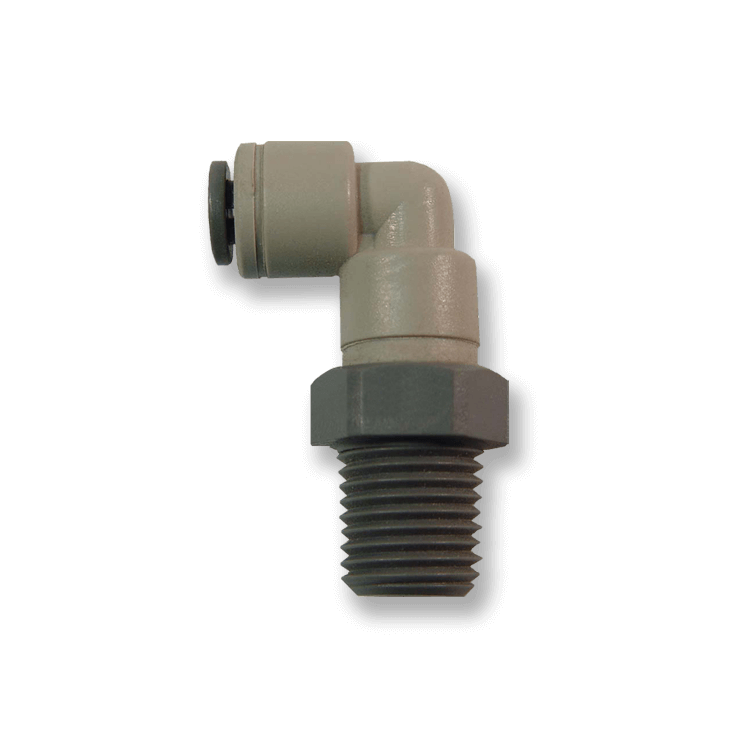

PMES Series Push-to-Connect to Male NPT Swivel Elbow connectors are available in Acetal and select sizes in Polypropylene, and Kynar®. Push-to-Connect sizes range from 5/32 inch to 1/2 inch and Threads range from 1/2 inch MNPT to 1/8 inch MNPT. Gray or White Acetal are NSF and FDA-approved and have Buna seals for air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene. For non-swivel elbows see PME Series.
| SKU | Description |
|---|---|
| PMES-2M4 | 1/8 MNPT by 1/4 OD Swivel Elbow Push-to-Connect |
| PMES-2M532 | 1/8 MNPT by 5/32 OD Swivel Elbow Push-to-Connect |
| PMES-2M5 | 1/8 MNPT by 5/16 OD Swivel Elbow Push-to-Connect |
| PMES-2M6 | 1/8 MNPT by 3/8 OD Swivel Elbow Push-to-Connect |
| PMES-4M4 | 1/4 MNPT by 1/4 OD Swivel Elbow Push-to-Connect |
| PMES-4M532 | 1/4 MNPT by 5/32 OD Swivel Elbow Push-to-Connect |
| PMES-4M5 | 1/4 MNPT by 5/16 OD Swivel Elbow Push-to-Connect |
| PMES-4M6 | 1/4 MNPT by 3/8 OD Swivel Elbow Push-to-Connect |
| PMES-4M8 | 1/4 MNPT by 1/2 OD Swivel Elbow Push-to-Connect |
| PMES-6M4 | 3/8 MNPT by 1/4 OD Swivel Elbow Push-to-Connect |
| PMES-6M5 | 3/8 MNPT by 5/16 OD Swivel Elbow Push-to-Connect |
| PMES-6M6 | 3/8 MNPT by 3/8 OD Swivel Elbow Push-to-Connect |
| PMES-6M8 | 3/8 MNPT by 1/2 OD Swivel Elbow Push-to-Connect |
| PMES-8M8 | 1/2 MNPT by 1/2 OD Swivel Elbow Push-to-Connect |
