Description

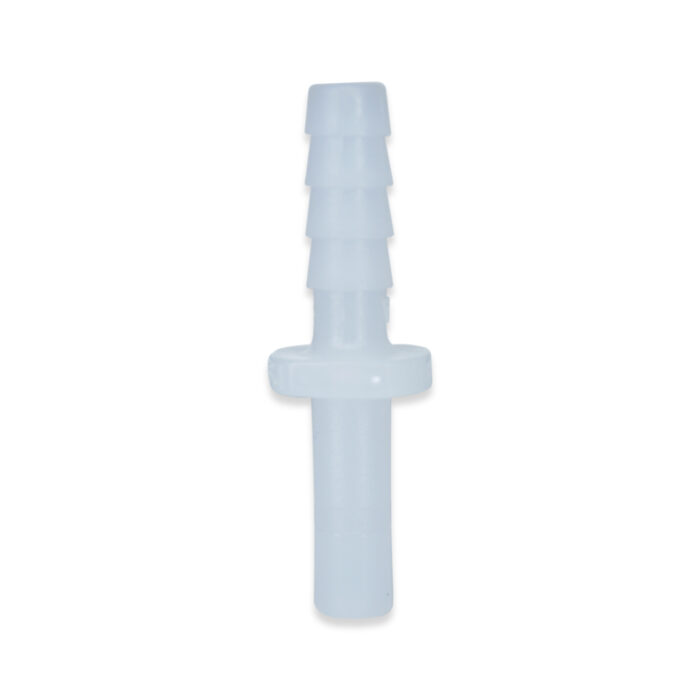

Stem connector to Barbed Fittings Acetal, Polypropylene, and Kynar® can be added to a Push-to-Connect connector to terminate in a barbed connection for use with Polyethylene, Vinyl, or braided Vinyl tubing. Stem sizes range from 1/2 inch to 1/4 inch reducing to a 1/4 inch Barbed Fitting. Gray or White Acetal are NSF and FDA-approved and have Buna seals for use in air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.
SKU | Description |
---|---|
PSB-4-GA | 1/4 inch Stem by 1/4 inch Barb Gray Acetal Push-in |
PSB-4-K | 1/4 inch Stem by 1/4 inch Barb PVDF Push-in |
PSB-4S3-GA | 1/4 inch Stem by 3/16 Barb Gray Acetal Push-in |
PSB-4S4-K | 1/4 inch Stem by 1/4 inch Barb PVDF Push-in |
PSB-4S5-GA | 1/4 inch Stem by 5/16 inch Barb Gray Acetal Push-in |
PSB-4-WP | 1/4 inch Stem by 1/4 inch Barb White Polypropylene Push-in |
PSB-5-GA | 5/16 inch Stem by 5/16 inch Barb Gray Acetal Push-in |
PSB-5S3-GA | 5/16 inch Stem by 3/16 Barb Gray Acetal Push-in |
PSB-5S4-GA | 5/16 inch Stem by 1/4 inch Barb Gray Acetal Push-in |
PSB-5S6-GA | 5/16 inch Stem by 3/8 inch Barb Gray Acetal Push-in |
PSB-6-GA | 3/8 inch Stem by 3/8 inch Barb Gray Acetal Push-in |
PSB-6-K | 3/8 inch Stem by 3/8 inch Barb PVDF Push-in |
PSB-6S4-GA | 3/8 inch Stem by 1/4 inch Barb Gray Acetal Push-in |
PSB-6S4-K | 3/8 inch Stem by 1/4 inch Barb PVDF Push-in |
PSB-6S5-GA | 3/8 inch Stem by 5/16 inch Barb Gray Acetal Push-in |
PSB-6S8-GA | 3/8 inch Stem by 1/2 inch Barb Gray Acetal Push-in |
PSB-6S8-WP | 3/8 inch Stem by 1/2 inch Barb White Polypropylene Push-in |
PSB-6-WP | 3/8 inch Stem by 3/8 inch Barb White Polypropylene Push-in |
PSB-8-GA | 1/2 inch Stem by 1/2 inch Barb Gray Acetal Push-in |
PSB-8S6-GA | 1/2 inch Stem by 3/8 inch Barb Gray Acetal Push-in |
PSB-8S6-WP | 1/2 inch Stem by 3/8 inch Barb White Polypropylene Push-in |
PSB-8-WP | 1/2 inch Stem by 1/2 inch Barb White Polypropylene Push-in |
