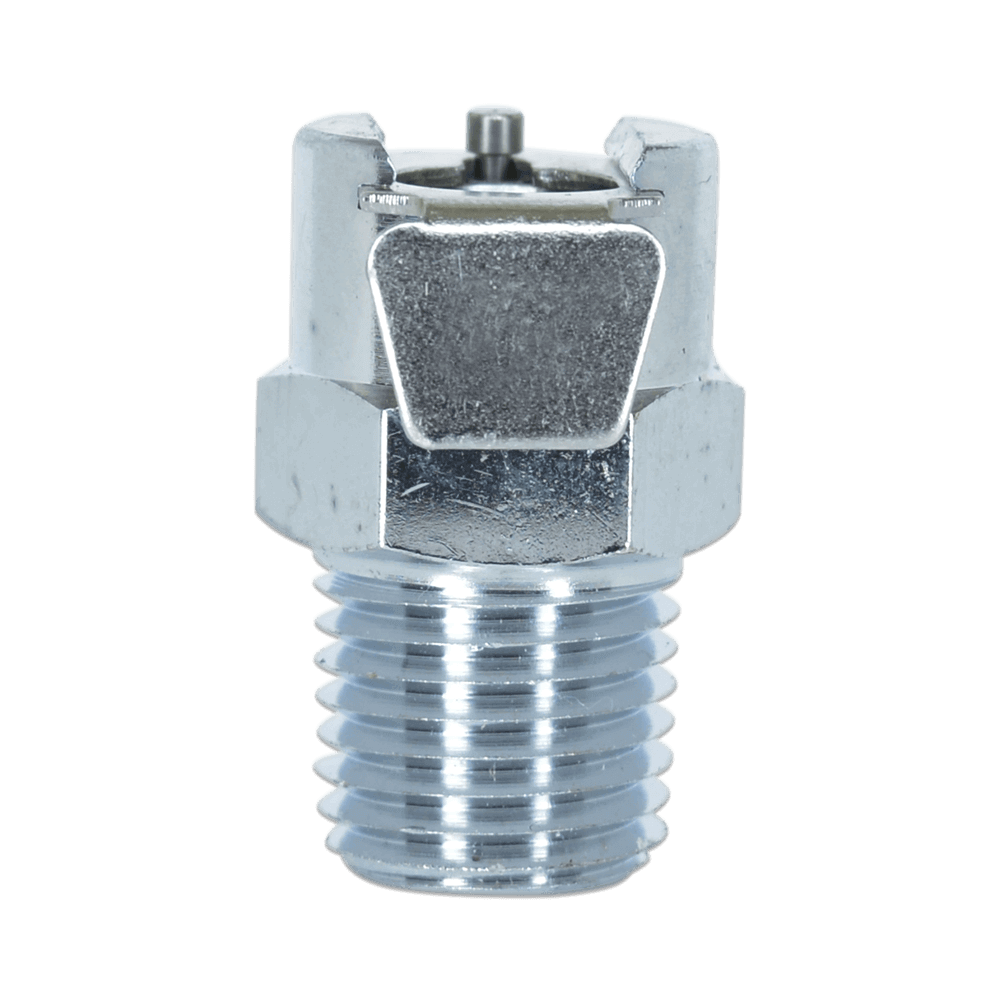

Chrome Plated Brass Male Thread Socket
CBMTS Series
Description
Produced in food-grade chrome plated brass, these 1/8″ flow size couplings are more durable and withstand higher pressures. They are available with internal shutoff valves or straight-through.
| NON-VALVED | VALVED | THREAD SIZE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|
| 20CB-S1-02 | 20CBV-SB1-02 | 1/8" NPT | 1.00" | .62" | .80" |
| 20CB-S1-02BSPT | 20CBV-SB1-02BSPT | 1/8" BSPT | 1.00" | .62" | .80" |
| 20CB-S1-04 | 20CBV-SB1-04 | 1/4" NPT | 1.00" | .62" | .80" |
| 20CB-S1-04BSPT | 20CBV-SB1-04BSPT | 1/4" BSPT | 1.00" | .62" | .80" |
| 40CB-S1-04 | 40CB-SB1-04 | 1/4" NPT | 1.15" | .86" | .90" |
| 40CB-S1-04BSPT | 40CB-SB1-04BSPT | 1/4" BSPT | 1.15" | .86" | .90" |
| 40CB-S1-06 | 40CB-SB1-06 | 3/8" NPT | 1.15" | .86" | .90" |
| 40CB-S1-06BSPT | 40CB-SB1-06BSPT | 3/8" BSPT | 1.15" | .86" | .90" |
