Description

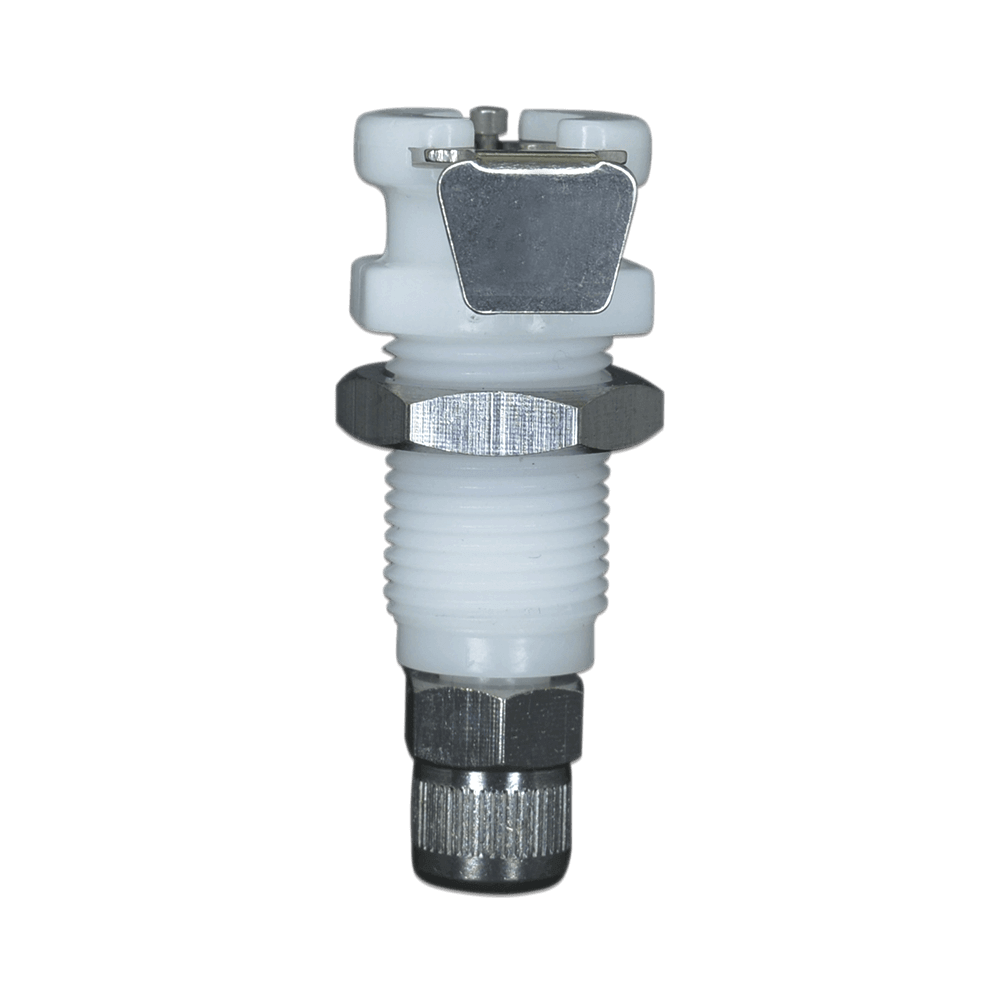

40 Series Socket, Panel Mount with Compression Fitting for 1/4 OD and 3/8 OD Tubing.
Available with or without a shut off. Compression Nut is Nickel-Plated Brass. Stainless Steel Latch and spring.
Used with a .688 Thru hole. Nickel Plated Brass Panel nut is a 13/16 Hex with 11/16-24 threads.
| NON-VALVED | VALVED | TUBE ID/OD | LENGTH | WIDTH |
|---|---|---|---|---|
| S40AC-S8-04 | S40ACV-S8-04 | .170 ID .250 OD | 1.87 | .75 |
| S40AC-S8-06 | S40ACV-S8-06 | .250 ID .375 OD | 1.87 | .75 |
