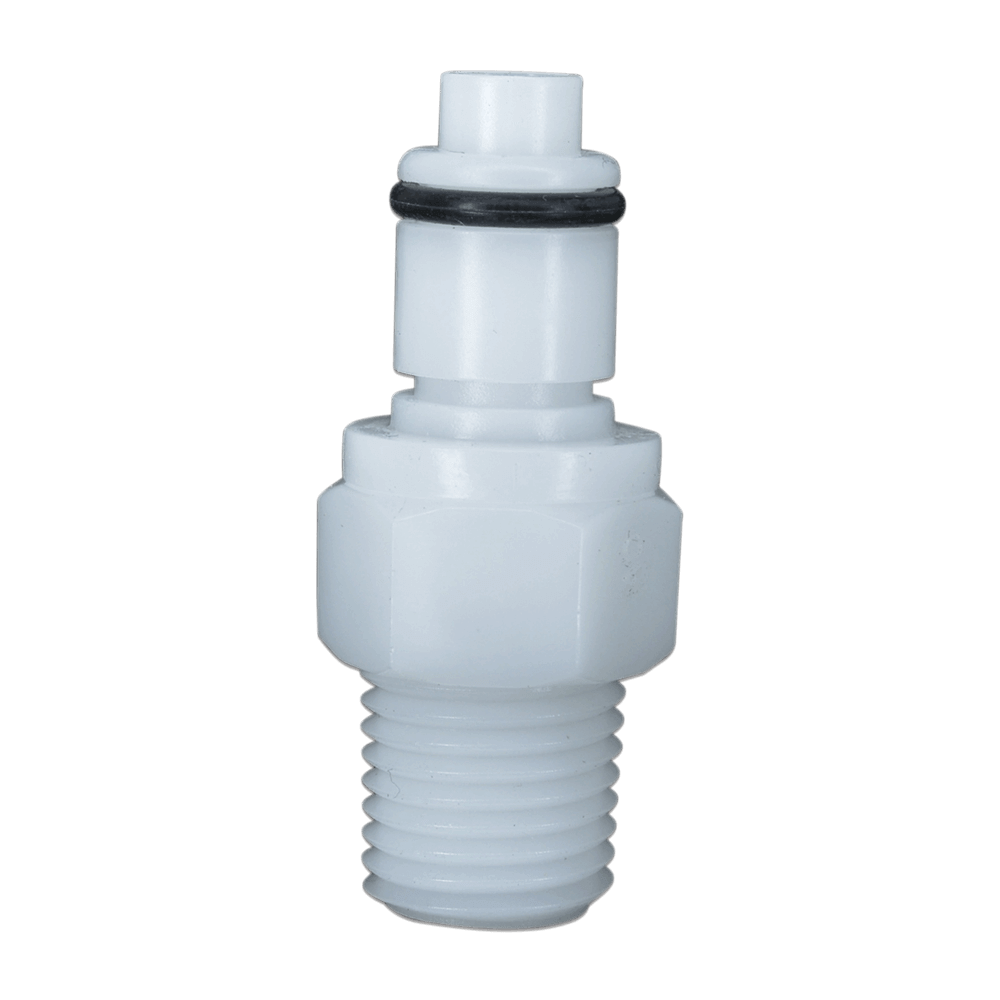

Insert Pipe Thread
20AC PB1 NPT Series
Description
1/8 Flow, Male insert, with 1/8, or 1/4 Pipe Threads. BSPT optional.
Available with or without shutoff. Buna o-ring.
| NON-VALVED | VALVED | THREAD | LENGTH | WIDTH |
|---|---|---|---|---|
| 20AC-PB1-02 | 20ACV-PB1-02 | 1/8 NPT | 1.03NV/1.36V | .50 |
| 20AC-PB1-02BSPT | 20ACV-PB1-02BSPT | 1/8 BSPT | 1.03NV/1.36V | .50 |
| 20AC-PB1-04 | 20ACV-PB1-04 | 1/4 NPT | 1.13NV/1.39V | .50 |
| 20AC-PB1-04BSPT | 20ACV-PB1-04BSPT | 1/4 BSPT | 1.13NV/1.39V | .50 |
