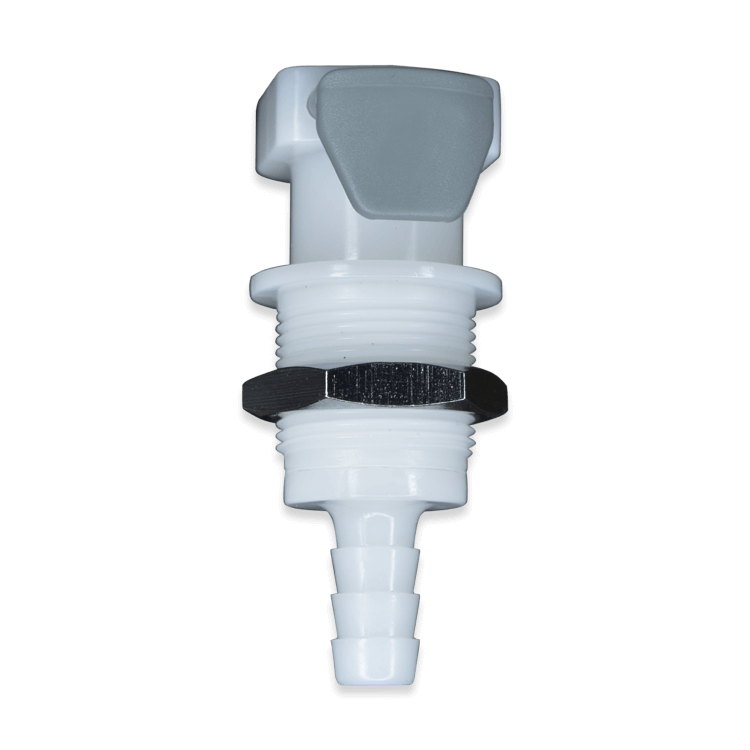

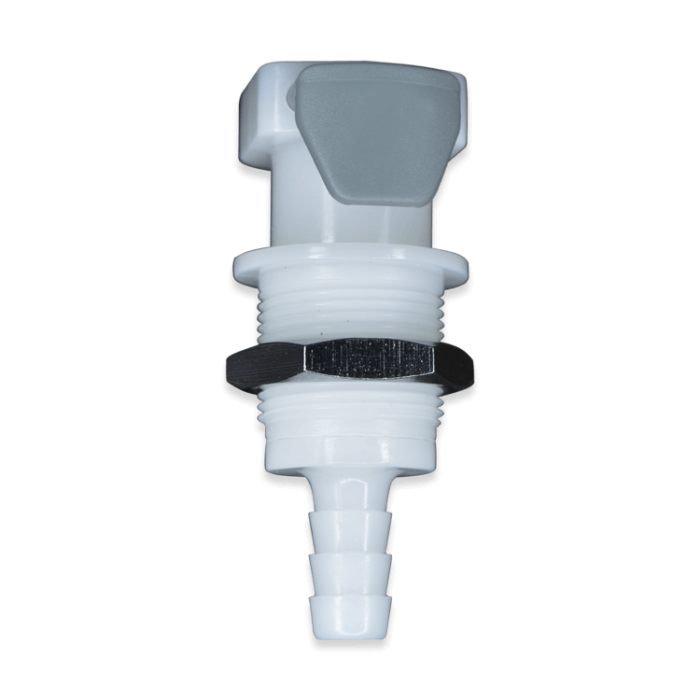

Panel Mount Hose Barb Socket, Plastic Release Latch
50AC-S3 Series
Description
50AC-S3 Series with a plastic-latch Quick Couplers has a 1/4″ nominal flow. They are made of White Acetal with a plastic thumb latch coupler and a Buna O-ring insert standard. Also, the temp ranges are -40° F to 180°F for Acetal.
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| 50AC-S3-04 | 50ACV-SB3-04 | 1/4" ID | 6.4" MM ID | 2.10" | .90" | 1.05" |
| 50AC-S3-05 | 50ACV-SB3-05 | 5/16" ID | 7.9" MM ID | 2.10" | .90" | 1.05" |
| 50AC-S3-06 | 50ACV-SB3-06 | 3/8" ID | 9.5" MM ID | 2.10" | .90" | 1.05" |
