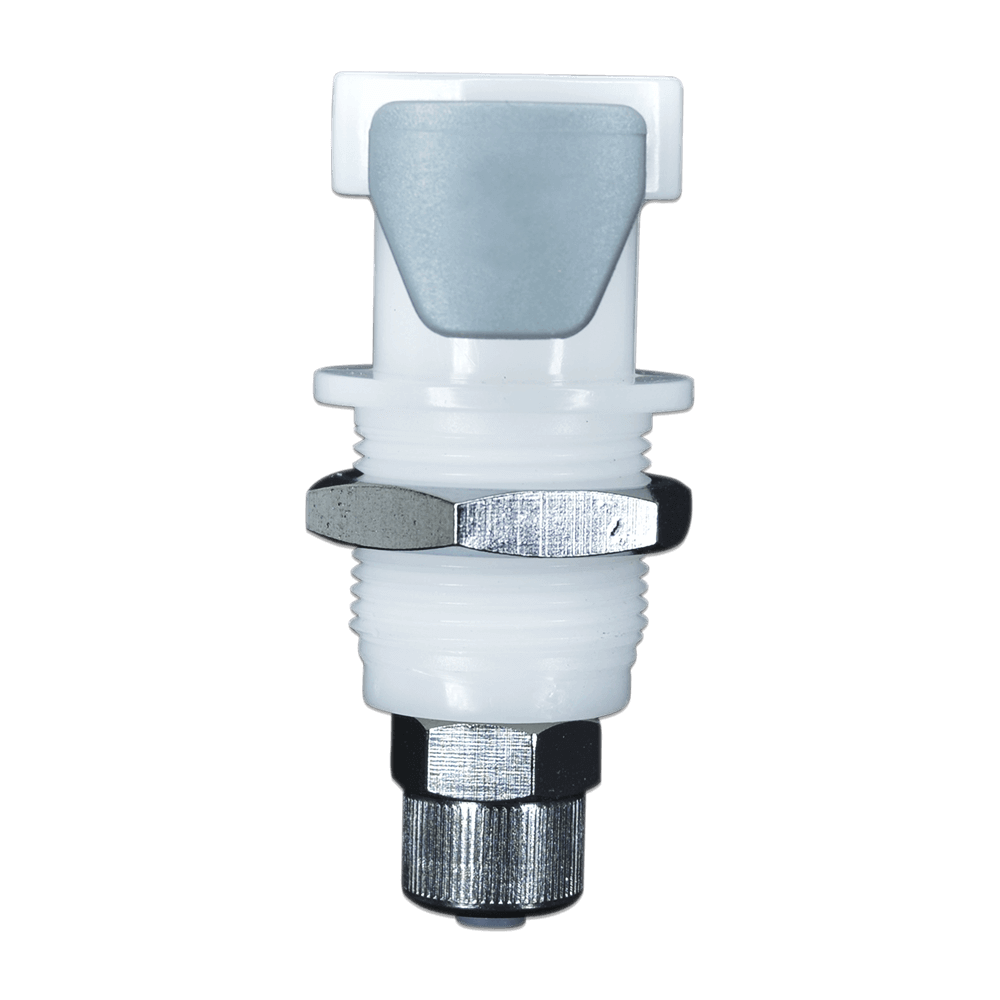

Socket, Acetal Panel Mount, PTF Connection, Plastic Release Latch
50AC S8 Series
Description
50AC S8 Series are acetal 1/4 flow sockets with a plastic thumb latch panel mount, PTF Plastic Tubing: Ferrurle-less gripper, for an easy quick-release alternative. Furthermore, the operating pressure of these quick couplers is 120psi and the temperature range is -40 °F to 180°F.
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| 50AC-S8-04 | 50ACV-SB8-04 | 1/4" OD, .17" ID | 6.4 MM OD, 4.3 MM ID | 1.97" | .90" | 1.05" |
| 50AC-S8-06 | 50ACV-SB8-06 | 3/8" OD, .25" ID | 9.5 MM OD, 6.4 MM ID | 2.10" | .90" | 1.05" |
