Description

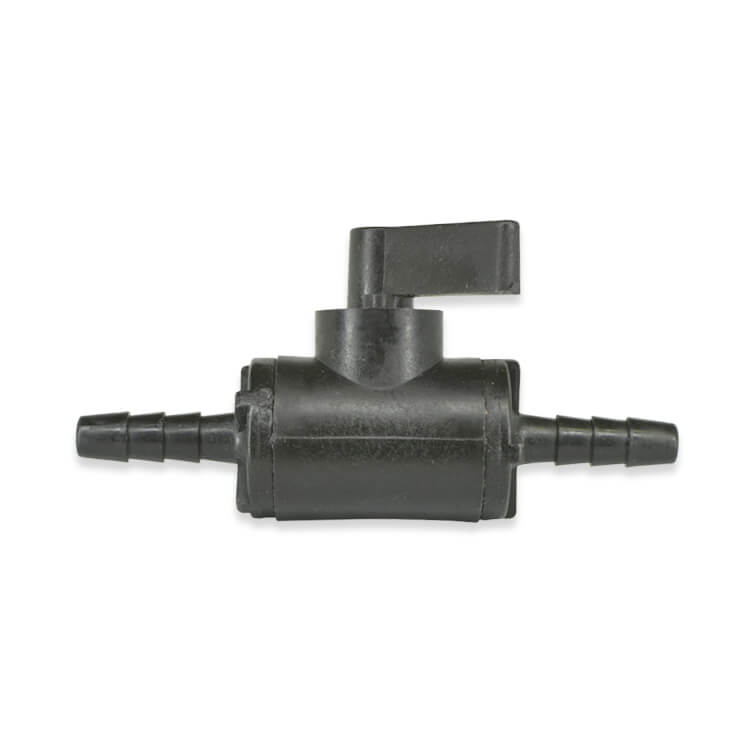

The PBV5 Series is a Two-way Ball Valve with an operating pressure of 125 psi, 140° F, with .312 thru hole in multiple configurations of Barb, Push-in, or Thread. PVC and White Filled Polypropylene materials used for chemical resistance applications are NSF Standard 42 Certified. MakroBlend® (a Polycarbonate and PBT blend) is an NSF Standard 51 certified material. An optional Panel Mount is available for a .750 thru hole and comes with a Brass knurled nut or Electroless Nickel-plated Hex mount nut. The Flag Handle comes standard with an optional round Knurled Handle. The maximum panel is .125
| SKU | Description |
|---|---|
| PBV5-2W-4C | 5/16 Flow 1/4 Compression PVC 2-Way Ball Valve |
| PBV5-2W-4F | 5/16 Flow 1/4 FNPT PVC 2-Way Ball Valve |
| PBV5-2W-4F-PVCE | 5/16 Flow 1/4 FNPT PVC EPDM 2-Way Ball Valve |
| PBV5-2W-4F-PVCV | 5/16 Flow 1/4 FNPT PVC EPDM 2-Way Ball Valve |
| PBV5-2W-4M | 5/16 Flow 1/4 MNPT PVC 2-Way Ball Valve |
| PBV5-2W-4PE-PM JG | 5/16 Flow 1/4 Barb EPDM PM JG 2-Way Ball Valve |
| PBV5-2W-5B | 5/16 Flow 5/16 Barb PVC 2-Way Ball Valve |
| PBV5-2W-4PI | 5/16 Flow 1/4 Push-to-Connect PVC 2-Way Ball Valve |
| PBV5-2W-5F | 5/16 Flow 5/16 FNPT PVC 2-Way Ball Valve |
| PBV5-2W-5M | 5/16 Flow 5/16 MNPT PVC 2-Way Ball Valve |
| PBV5-2W-5PI | 5/16 Flow 5/16 Push-to-Connect PVC 2-Way Ball Valve |
| PBV5-2W-6B | 5/16 Flow 3/8 Barb PVC 2-Way Ball Valve |
| PBV5-2W-6F | 5/16 Flow 3/8 FNPT PVC 2-Way Ball Valve |
| PBV5-2W-6M | 5/16 Flow 3/8 MNPT PVC 2-Way Ball Valve |
| PBV5-2W-6PI | 5/16 Flow 3/8 Push-to-Connect PVC 2-Way Ball Valve |
| PBV5-2W-8B | 5/16 Flow 1/2 Barb PVC 2-Way Ball Valve |
| PBV5-2W-8F | 5/16 Flow 1/2 FNPT PVC 2-Way Ball Valve |
| PBV5-2W-8M | 5/16 Flow 1/2 MNPT PVC 2-Way Ball Valve |
| PBV5-2W-4B | 5/16 Flow 1/4 Barb PVC 2-Way Ball Valve |
| PBV5-2W-2M | 5/16 Flow 1/8 MNPT PVC 2-Way Ball Valve |
| PBV5-2W-2F | 5/16 Flow 1/8 FNPT PVC 2-Way Ball Valve |
| PBV5-2W-2C | 5/16 Flow 1/8 Compression PVC 2-Way Ball Valve |
| PBV5-2W-2B | 5/16 Flow 1/8 Barb PVC 2-Way Ball Valve |
