Description

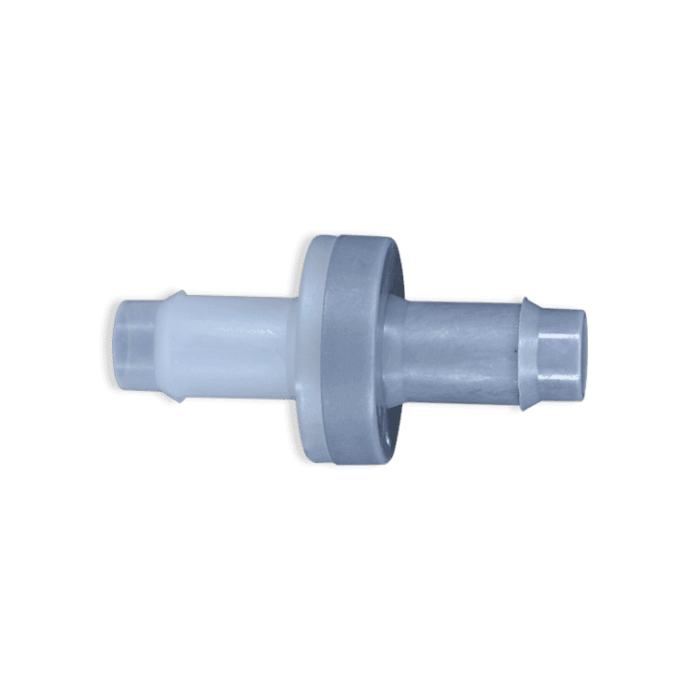

MPV Plastic Diaphragm Check Valves are Manufactured by Pneuline Supply. One way valves are used for Ozone, pools, spas, printing, ink jet applications. Wound therapy, air mattresses.
printing and ink jet applications. Vacuum applications.
Our valves are offered in 5 different housing materials and 6 different standard barb configurations.
- Kynar® 720 PVDF, Acetal, Nylon, Glass-filled Nylon, Polypropylene.
- Barbed connectors are available in 1/8 inch, 3/16 inch, and 1/4 inch standard flow or 1/4 inch, 5/16 inch, and 3/8 inch high flow.
- Diaphragm selections are Fluorosilicone, EPDM, Viton®, or Kalrez® FFKM
| SKU | Description | Flow (l/h) | Crack Pressure |
|---|---|---|---|
| MPV-2B-KK | 1/8 Barb PVDF / Kalrez® Check Valve | 43.17 | .011 |
| MPV-2B-KV | 1/8 Barb PVDF / FKM Check Valve | 68.09 | .006 |
| MPV-2B-NF | 1/8 Barb Nylon / Fluorosilicone Check Valve | 62.79 | .007 |
| MPV-2B-NV | 1/8 Barb Nylon / FKM Check Valve | 68.09 | .006 |
| MPV-3B-AF | 3/16 Barb Acetal / Fluorosilicone Check Valve | 62.79 | .007 |
| MPV-3B-KV | 3/16 Barb PVDF / FKM Check Valve | 68.09 | .006 |
| MPV-3B-NF | 3/16 Barb Nylon / Fluorosilicone Check Valve | 62.79 | .007 |
| MPV-3B-NV | 3/16 Barb Nylon / FKM Check Valve | 68.09 | .006 |
| MPV-3B-PF | 3/16 Barb Polypropylene / Flourosilicone Check Valve | 62.79 | .007 |
| MPV-3B-PV | 3/16 Barb Polypropylene / FKM Check Valve | 68.09 | .006 |
| MPV-4B-HKK | 1/4 Barb Hi-Flow PVDF / Kalrez Check Valve | 10.82 | .001 |
| MPV-4B-HKV | 1/4 Barb Hi-Flow PVDF / FKM Check Valve | 35.75 | .001 |
| MPV-4B-HNF | 1/4 Barb Hi-Flow Nylon / Fluorosilicone Check Valve | 20.57 | .001 |
| MPV-4B-HNV | 1/4 Barb Hi-Flow PVDF / FKM Check Valve | 35.75 | .001 |
| MPV-4B-KV | 1/4 Barb Standard Flow PVDF / FKM Check Valve | 68.09 | .006 |
| MPV-4B-NF | 1/4 Barb Nylon / Fluorosilicone | 62.79 | .007 |
| MPV-4B-NV | 1/4 Barb Nylon / FKM Check Valve | 68.09 | .006 |
| MPV-4B-PF | 1/4 Barb Polypropylene / Fluorosilicone Check Valve | 62.79 | .007 |
| MPV-4B-PV | 1/4 Barb Polypropylene / FKM Check Valve | 68.09 | .006 |
| MPV-5B-AF | 5/16 Barb Acetal / Fluorosilicone Check Valve | 20.57 | .001 |
| MPV-5B-KK | 5/16 Barb PVDF / Kalrez® Check Valve | 10.82 | .001 |
| MPV-5B-KV | 5/16 Barb PVDF / FKM Check Valve | 35.73 | .001 |
| MPV-5B-NF | 5/16 Barb Nylon / Fluorosilicone Check Valve | 20.57 | .001 |
| MPV-5B-NV | 5/16 Barb Nylon / FKM Check Valve | 35.75 | .001 |
| MPV-6B-KV | 3/8 Barb PVDF /FKM Check Valve | 35.75 | .001 |
| MPV-6B-NF | 3/8 Barb Nylon / Fluorosilicone Check Valve | 20.57 | .001 |
| MPV-6B-NV | 3/8 Barb Nylon / FKM Check Valve | 35.75 | .001 |
