Description

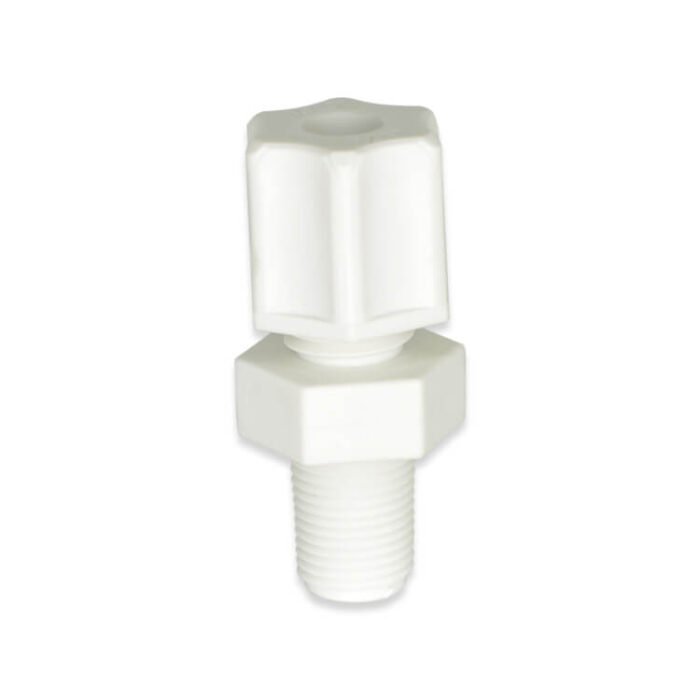

The CCV Series are miniature Poppet Check Valves and Pressure Release Valves available with 1/8 inch Male NPT threads and 1/4 inch compression fittings. The NPT fittings are made of Polypropylene, Nylon, and ABS with O-rings made of Buna-N, EPDM, Viton®, Silicone, or fluorosilicone. The spring pressure is 20 psi. The compression fittings are made of Polypropylene with a .713 OD size.
| SKU | Description |
|---|---|
| CCV-2M14C-1 | 1/8 MNPT by 1/4 Comp Polypropylene / EPDM 1 psi |
| CCV-2M14C-1.5 | 1/8 MNPT by 1/4 Comp Polypropylene / EPDM 1.5 psi |
| CCV-2M14C-3 | 1/8 MNPT by 1/4 Comp Polypropylene / EPDM 3 psi |
| CCV-2M14C-3-PPS | 1/8 MNPT by 1/4 Comp Polypropylene / Silicone 3 psi |
| CCV-2M-3 | 1/8 MNPT by 1/8 MNPT Polypropylene / EPDM 3 psi |
| CCV-4C6M-3 | 1/4 Comp by 3/8 MNPT Polypropylene / EPDM 3 psi |
| CCV-4M14C-1 | 1/4 MNPT by 1/4 Comp Polypropylene / EPDM 1 psi |
| CCV-4M-4 | 1/4 MNPT by 1/4 MNPT Polypropylene / EPDM 4 psi |
