Description

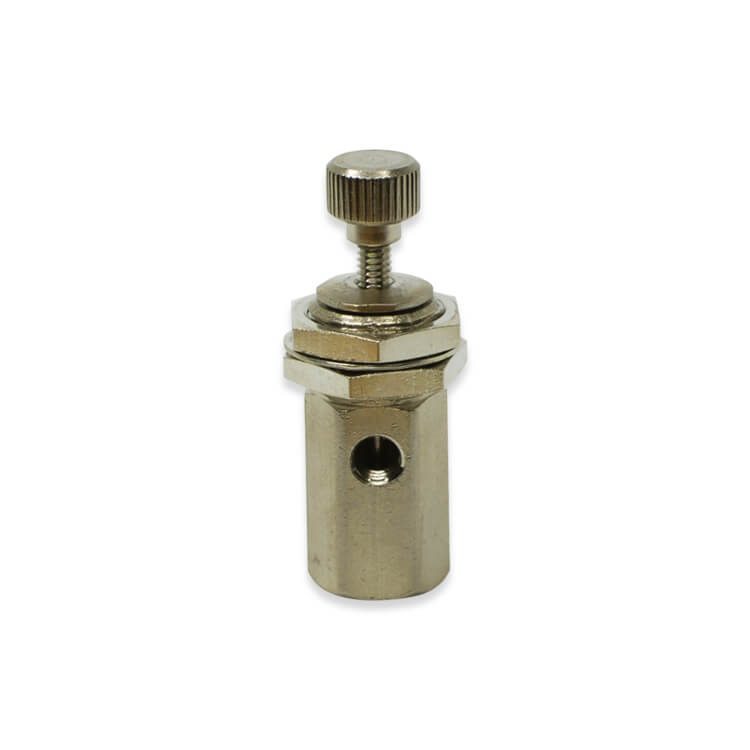

Mini Brass 90˚ Needle Valve with an inlet of 10-32 male threads. Outlet sizes are female 10-32 threads, male 10-32 threads or 1/16”, 1/8” and 3/32” barbs. Available seals are Buna-N, EPDM, and Viton®. The maximum operating pressure is 125 psi, maximum operating temperature is 180˚ F. Panel mount is standard.
| SKU | Description |
|---|---|
| MNV-10M10F | 10-32 Male inlet Female outlet Needle Valve |
| MNV-10F10M | 10-32 Female inlet Male outlet Needle Valve |
| MNV-10F-10F | 10-32 Female Nickel Needle Valve |
| MNV-18M10F | 1/8 inch Male NPT 10-32 Female Needle Valve |
