Description

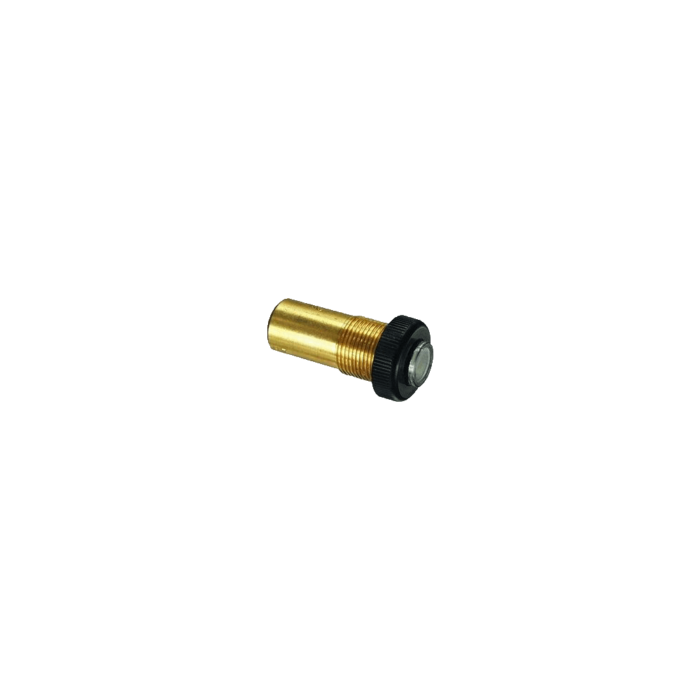

The CLPI-Series is a multi-pin pressure indicator made of Brass. The indicator pins come in 4 colors: green, white, red, and yellow. This indicator is supplied with a #15/32-32 nut and lock washer for mounting. This is a plunger type indicator and when the pins are extended the indicator is on. The panel mount threads are 10-32 UNF. The input pressure is 150 psi with the minimum actuation pressure of 15 psi. The maximum panel thickness is 3/16”. A 40-micron filter is recommended. The indicator is for use with air only.
| SKU | DESCRIPTION |
|---|---|
| CLPI-2-G | 10-32 Female Green Pressure Indicator |
| CLPI-10-RD | 10-32 Female Red Pressure Indicator |
