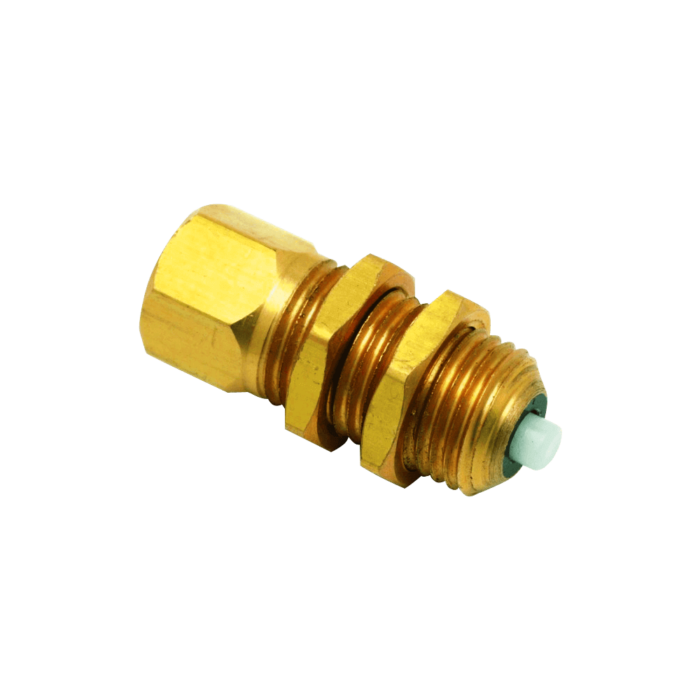

The CMPI Series is a single-pin 5/32” bore pressure indicator made of Brass. When the white pin is extended, the indicator is on. In addition, it is mountable on a maximum panel thickness of 3/16”. The maximum input pressure is 150 psi and is recommended for air only. The mounting threads are 10-32 UNF and require a 1/4″ NPT diameter mounting hole. Furthermore, the hex measures 5/16”. The indicator is supplied with 2 panel mounting nuts. 40-micron filtration is recommended.
SKU | DESCRIPTION |
---|---|
CMPI-10-PM | 10-32 Male Brass Panel Mount Pressure Indicator |
